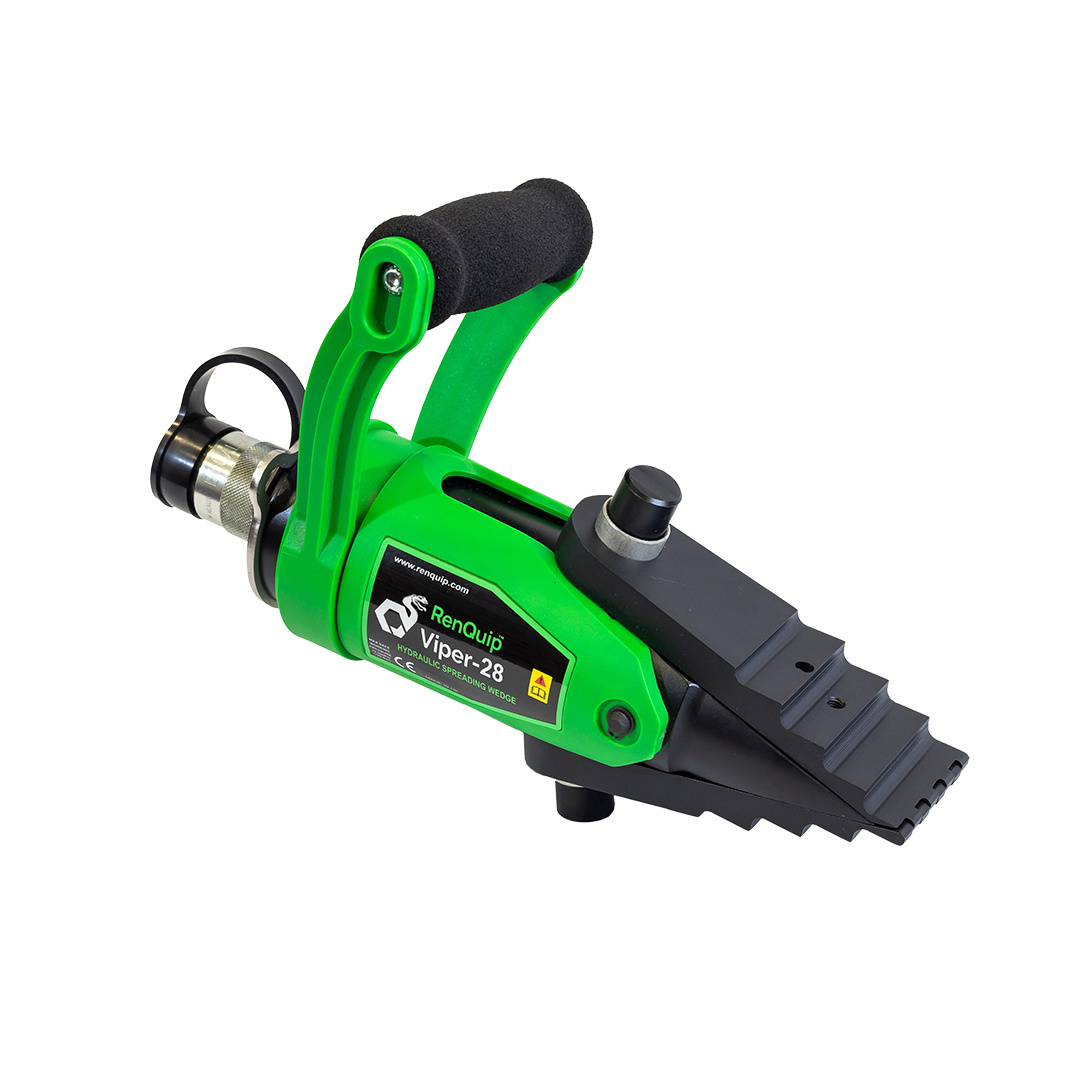

VIPER-28 Series
- Lightweight and portable for remote or confined space use
- Available as a self-contained unit with built-in pump or as a single or twin tool kit supplied with pressure rated and capacity matched pump
Product Overview
The VIPER-28 Series is RenQuip’s most powerful hydraulic flange spreading wedge, engineered for safe and controlled separation of flanged joints during pipeline maintenance, valve replacement, gasket removal and industrial field operations.
Despite its compact and lightweight construction, the VIPER-28 generates an impressive 277 kN (62,272 lbf) of spreading force per tool and requires only a 5 mm access gap, making it well-suited for tight or restricted work areas. Using two VIPER-28 tools simultaneously is recommended to ensure an even separation and maintain a parallel flange gap while providing the operator with precise control. The single-pin assembly/disassembly system on the VIPER-28 Series allows for quick maintenance and extended tool life, minimising downtime during critical turnaround operations.
- Maximum spreading force up to 277 kN (62,272 lbf)
- Spreading distance up to 124 mm with stepped blocks
- Narrow jaw width of 53.5 mm
Product resources
Technical specifications
| Model number | Min. Flange Gap (mm) | Jaw Width (mm) | Jaw Step (mm) | Max Spreading Force (kN) | Max Spreading Distance with Spreading Blocks (mm) | Max Wedge Protrusion (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|

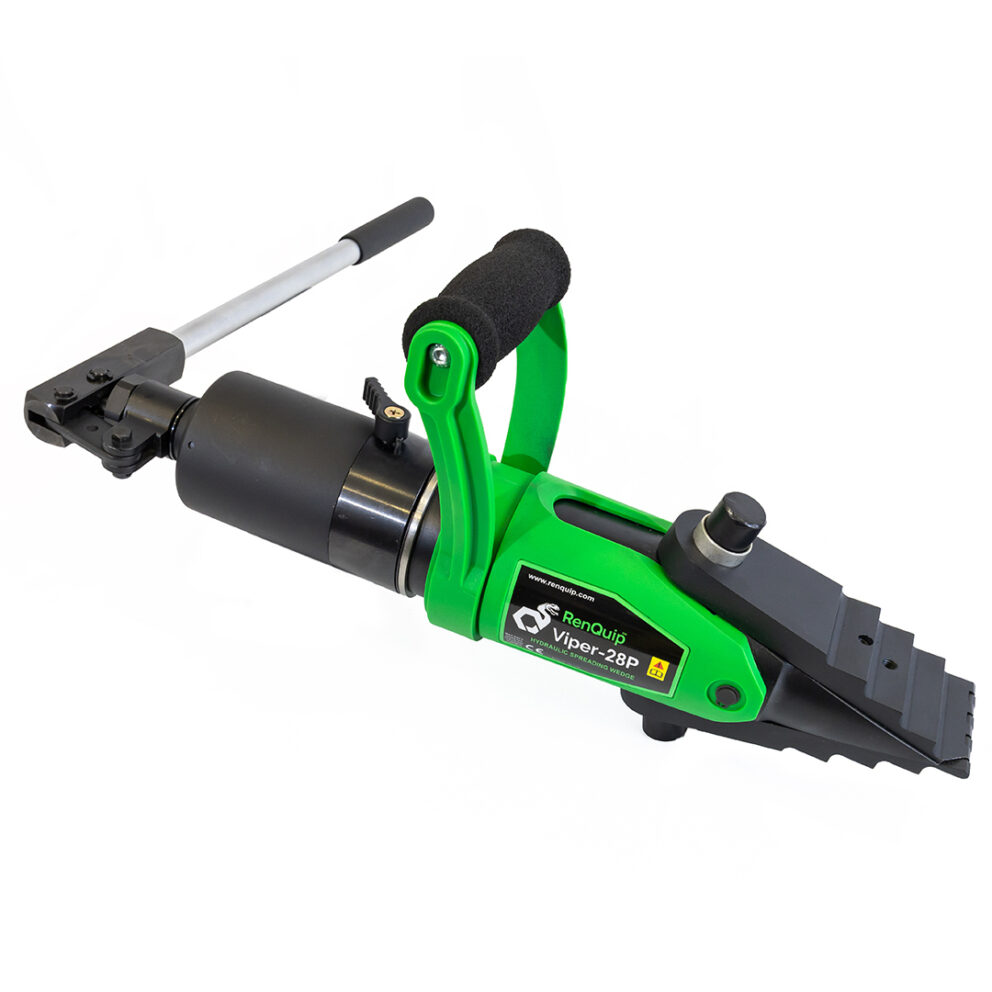

| VIPER-28P | 5 | 55 | 16 | 277 | 124 | 39.5 | 7.5 |
| VIPER-28K | 5 | 55 | 16 | 277 | 124 | 39.5 | 5 |
| VIPER-28H | 5 | 55 | 16 | 277 | 124 | 39.5 | 5 |
| VIPER-28M | 5 | 55 | 16 | 277 | 124 | 39.5 | 5 |
Dimension
Dimensions (mm)
| Model number | Length | Width | Height |
|---|---|---|---|
| VIPER-28P | 75 | 133 | 435 |
| VIPER-28K | 75 | 133 | 295 |
| VIPER-28H | 75 | 133 | 295 |
| VIPER-28M | 75 | 133 | 295 |
