WJ Series
- Lightweight, compact and portable, making it ideal for use in remote and confined locations
- Multiple tools can be used together to produce greater lifting forces
Product Overview
The WJ Series hydraulic lifting wedge jacks from RenQuip are compact yet powerful tools designed for lifting, pushing, and spreading applications and are also suitable for certain flange separation and dismantling tasks.

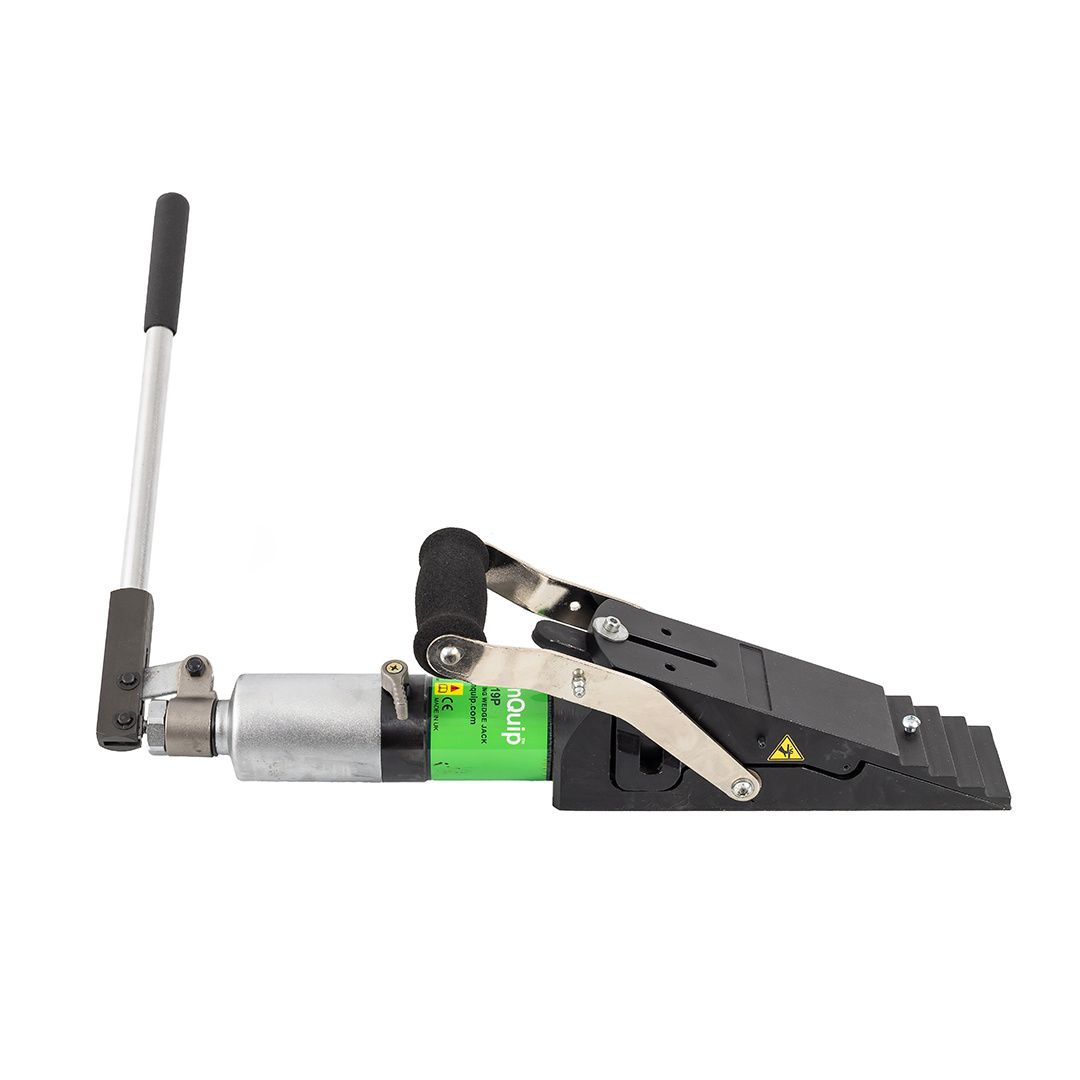

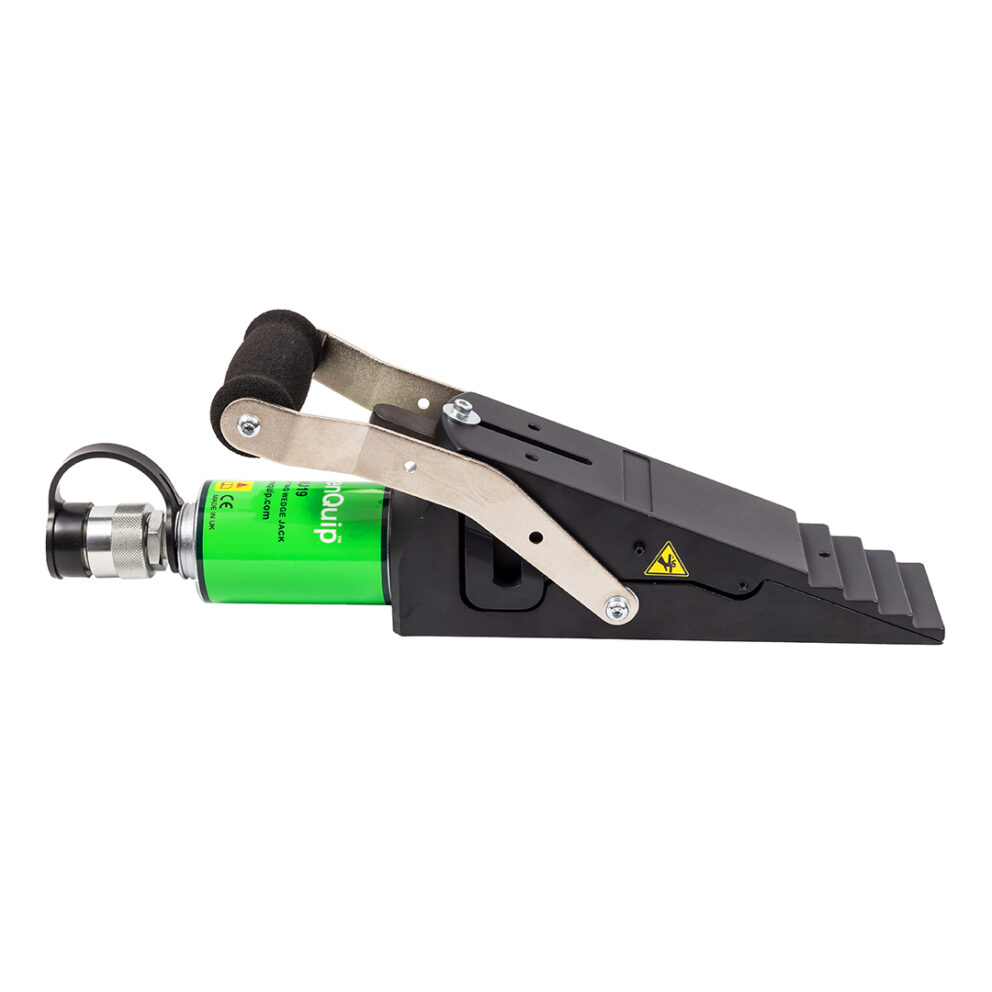

Available either as an integrated cylinder and pump unit or operated with an external pump, the WJ tools require only a 9.5 mm access gap under the load to initiate lifting and provide sufficient clearance for the placement of secondary lifting or moving equipment.
Capable of operating in any orientation, these tools are widely used for lifting and positioning heavy workshop machinery, levelling gearboxes and process equipment, and can also be effectively paired with skates for safe, controlled movement.
- Maximum lifting force of 183 kN (18.3T)
- Maximum lifting distance 67.5 mm (2.66")
- Minimum access gap 9.5 mm (0.37")
Product resources
Technical specifications
| Model number | Max Spreading Force (kN) | Min. Flange Gap (mm) | Lifting Distance (mm) | Deep Step Engagement (mm) | Wedge Protrusion (mm) | Oil Capacity (cc) | Tool Weight (kg) |
|---|---|---|---|---|---|---|---|
| WJ19P | 183 | 9.5 | 67.5 | 15 | 39 | - | 9.5 |
| WJ19K | 183 | 9.5 | 67.5 | 15 | 39 | 75 | 8.5 |
Dimension
Dimensions (mm)
| Model number | Length | Width | Height |
|---|---|---|---|
| WJ19P | 105 | 135 | 450 |
| WJ19K | 105 | 135 | 410 |
