Gauges and Mounting Blocks

Pressure Gauges & Gauge Mounting Blocks

  • Choice of dry or glycerine filled models available
  • Recommended for use within all hydraulic systems to monitor hydraulic pressure
  • Dual scale reading on all models
  • Gauges scaled to match high tonnage cylinders (over 109 tonnes) available on request
Enquire now

Product Overview

Hi-Force hydraulic pressure gauges are your “window” to the system and are recommended for use within all hydraulic systems to allow the user to constantly monitor the system pressure. Hi-Force hydraulic pressure gauges are manufactured to EN837-1 and are accurate to +/- 1% of full scale. Standard range models up to 109 tonnes are listed in the below table, however gauges to suit Hi-Force high tonnage cylinders are available on request. Individual gauge calibration certificates available at extra cost on request.

  • Clear precise dual scale readings
  • Manufactured to EN837-1
  • +/- 1% full scale accuracy

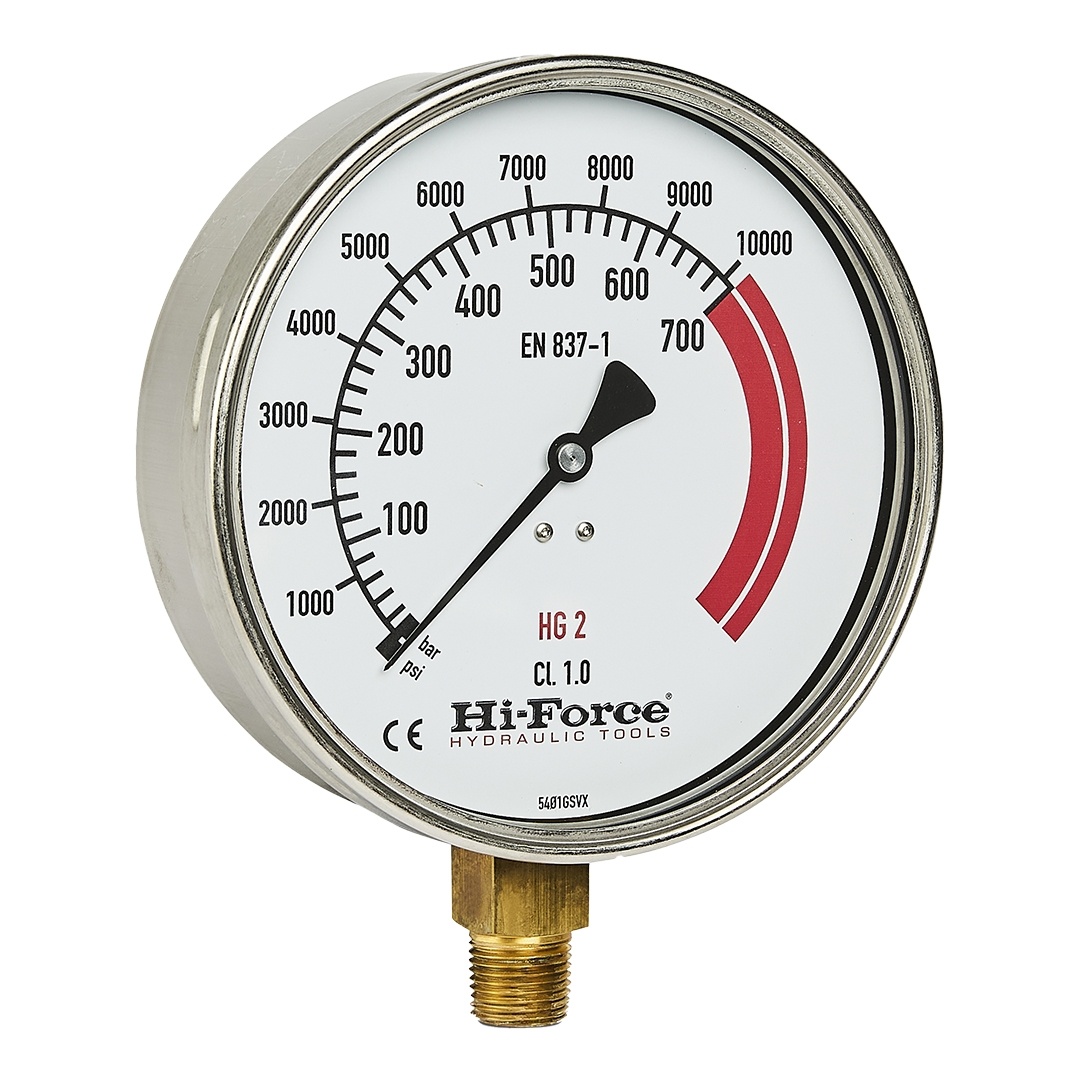

Gauges

Model NumberGauge diameter mmGauge typeReading Inner scaleReading Outer scaleInlet threadCompatible Hi-Force cylindersWeight kg
HG63G63glycerine0-700 bar0-10000 psi1/4"-18NPTAll models0.2
HG1100dry0-700 bar0-10000 psi1/2"-14NPTAll models0.9
HG1G100glycerine0-700 bar0-10000 psi1/2"-14NPTAll models1.0
HG5100dry0-700 bar0-4.5 tonnes1/2"-14NPTAll 4.5 tonnes models0.9
HG10100dry0-700 bar0-10 tonnes1/2"-14NPTAll 10 tonnes models0.9
HG11100dry0-700 bar0-11 tonnes1/2"-14NPTAll 11 tonnes models0.9
HG20100dry0-700 bar0-20 tonnes1/2"-14NPTAll 20 tonnes models0.9
HG23100dry0-700 bar0-23 tonnes1/2"-14NPTAll 23 tonnes models0.9
HG25100dry0-700 bar0-25 tonnes1/2"-14NPTAll 25 tonnes models0.9
HG32100dry0-700 bar0-32 tonnes1/2"-14NPTAll 32 tonnes models0.9
HG33100dry0-700 bar0-33 tonnes1/2"-14NPTAll 33 tonnes models0.9
HG50100dry0-700 bar0-50 tonnes1/2"-14NPTAll 50 tonnes models0.9
HG61100dry0-700 bar0-61 tonnes1/2"-14NPTAll 61 tonnes models0.9
HG102100dry0-700 bar0-102 tonnes1/2"-14NPTAll 102 tonnes models0.9
HG109100dry0-700 bar0-109 tonnes1/2"-14NPTAll 109 tonnes models0.9
HG2150dry0-700 bar0-10000 psi1/2"-14NPTAll models1.6
HG2G150glycerine0-700 bar0-10000 psi1/2"-14NPTAll models1.7

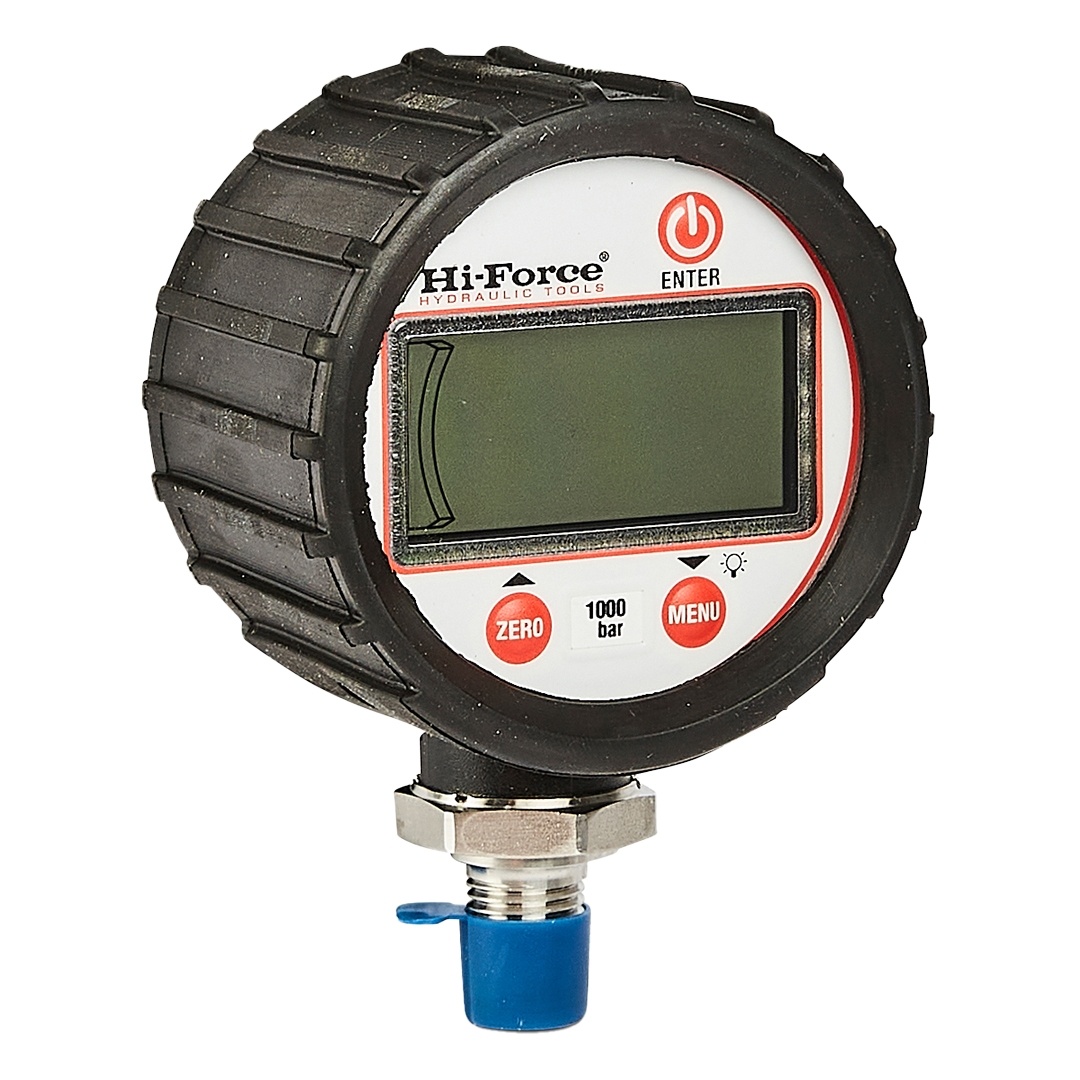

Digital Pressure Gauge

Model NumberGauge Diameter mmPressure Reading barPressure Reading psiPressure Reading mPaPressure Reading kg/cm2Inlet ThreadWeight kg
HDG1700-10000-145030-1000-1019.71/4"-18NPT0.2

Gauge Mounting Blocks

Model NumberLength mmWidth mmHeight mmGauge threadInlet ThreadOutlet ThreadWeight kg
HGA17532321/2"-14NPT3/8"-18NPT male3/8"-18NPT female0.3
HGA216032321/2"-14NPT3/8"-18NPT male3/8"-18NPT female0.9
HGA1-257532321/4"-18NPT3/8"-18NPT male3/8"-18NPT female0.3
HGA2-2516032321/4"-18NPT3/8"-18NPT male3/8"-18NPT female0.9
AGA1-257532501/4"-18NPT3/8"-18NPT male3/8"-18NPT female0.6

Services and support

Whether it is choosing the right tool for the job, improving technical and operational knowledge or product maintenance and warranty, HES is here to help.

Tell me more

Enquire now

Want to know more about the range? Our product team are on hand to support you with your requirements. Speak to our team today.

Enquire
