Hydraulic Hoses

High Pressure Hydraulic Hoses - Black & Red

Available in black or red outer covering to assist with identifying advance and return lines in double acting hydraulic systems

Enquire now

Product Overview

Hi-Force high pressure hydraulic hoses provide the vital, high quality, safe connection for your hydraulic equipment. Available in black and red and supplied complete with an ergonomically designed protective strain reliever at both ends, Hi-Force high pressure hoses are suitable for working pressures up to 700 bar with a 4:1 factor of safety.

Product resources

  • Working pressure 700 bar
  • 4:1 Factor of safety
  • Hand grip protective strain relievers

Technical specifications

BlackRedBlackRedBlackRed

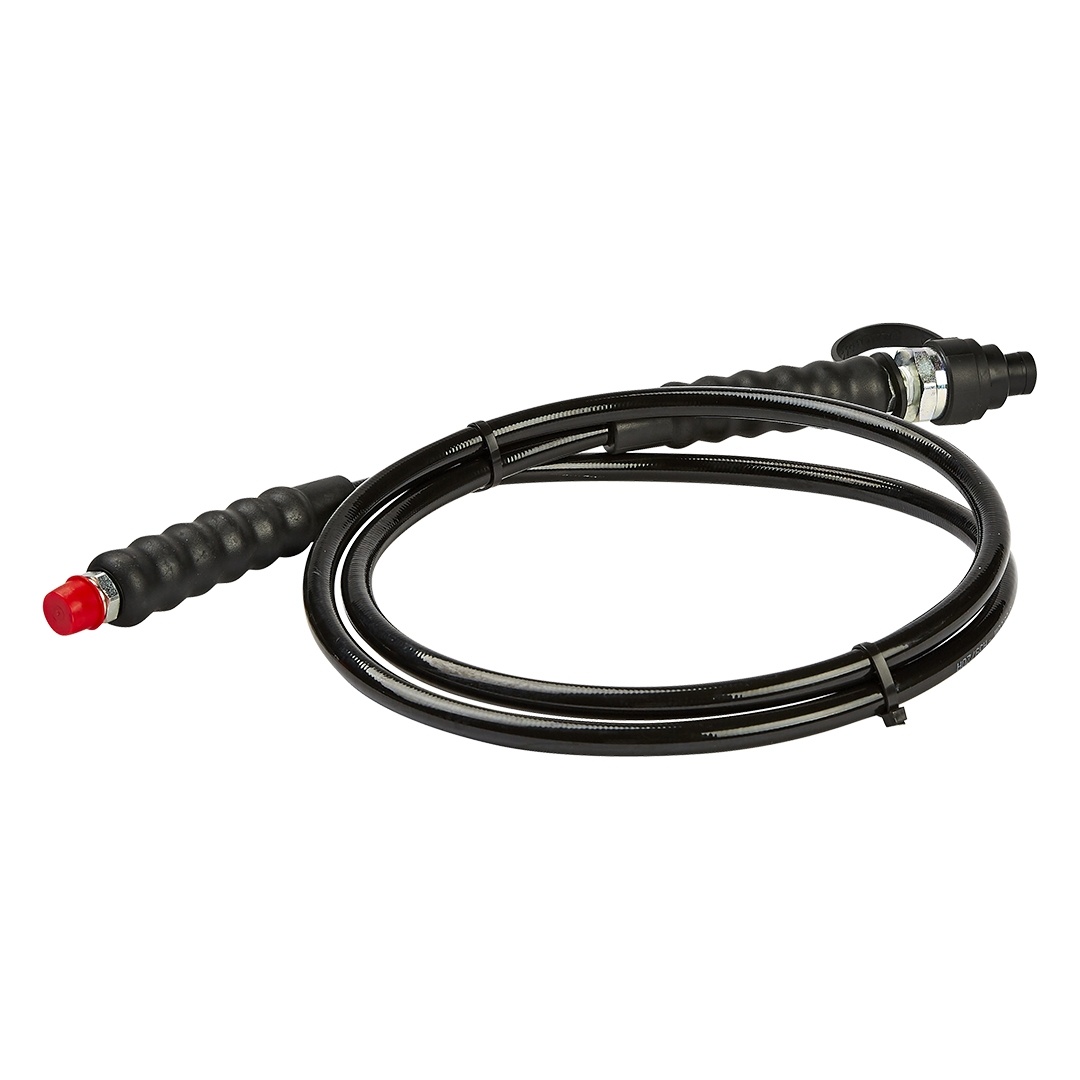

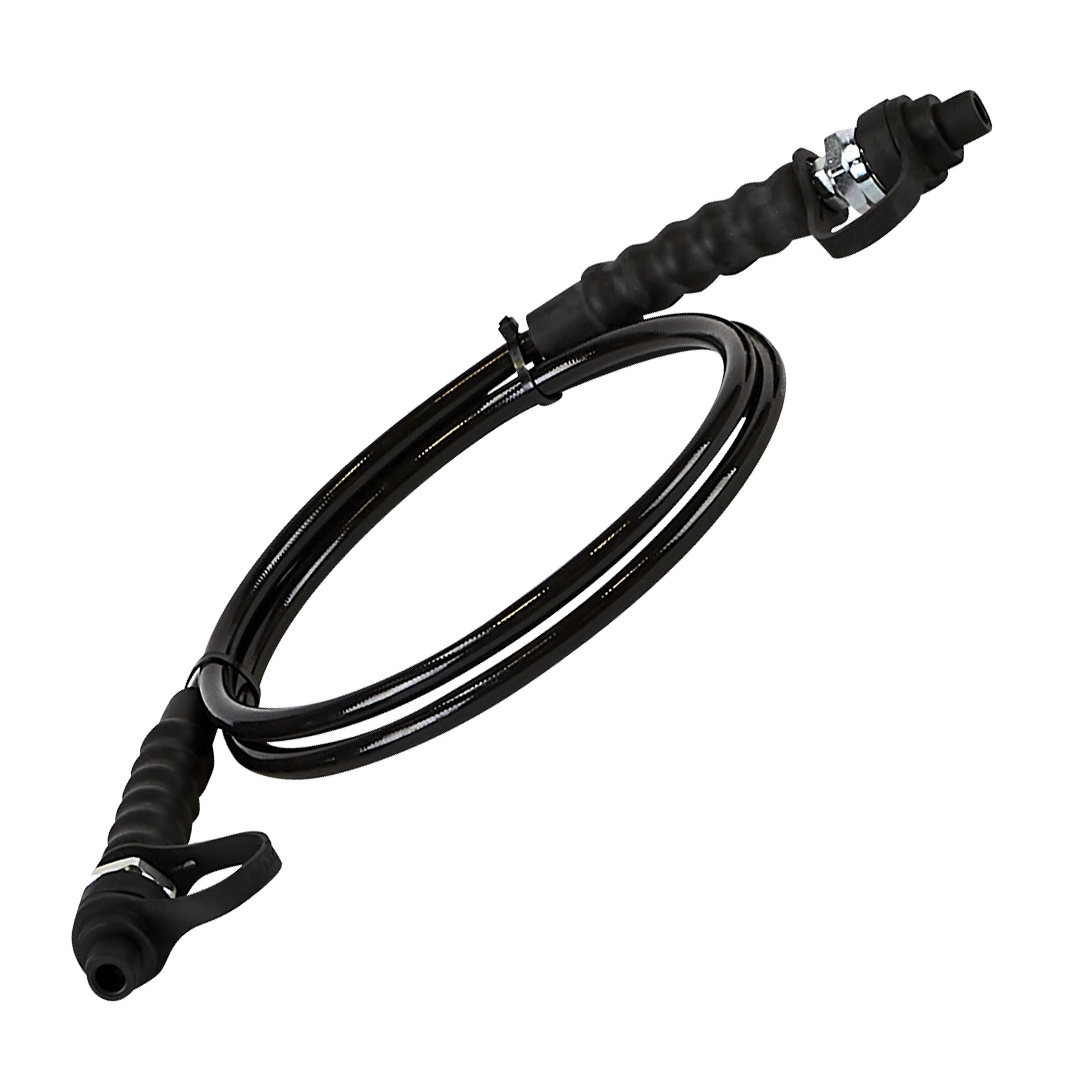

Length MetresNo Couplers 3/8"-18 NPT male fittings both ends Model NumberWeight kg3/8"-18 NPT male fitting one end with CM1 coupler fitted one end Model NumberWeight kgCM1 male couplers fitted both ends Model NumberWeight kg
0.5HH0.5HH0.5R0.4HC0.5HC0.5R0.5HC0.5CHC0.5CR0.5
1HH1HH1R0.5HC1HC1R0.7HC1CHC1CR1.0
2HH2HH2R0.7HC2HC2R0.9HC2CHC2CR1.1
3HH3HH3R0.9HC3HC3R1.0HC3CHC3CR1.2
4HH4HH4R1.2HC4HC4R1.2HC4CHC4CR1.5
5HH5HH5R1.3HC5HC5R1.4HC5CHC5CR1.6
6HH6HH6R1.5HC6HC6R1.6HC6CHC6CR1.8
10HH10HH10R2.2HC10HC10R2.4HC10CHC10CR2.6
12HH12HH12R2.8HC12HC12R3.0HC12CHC12CR3.2
15HH15HH15R3.1HC15HC15R3.3HC15CHC15CR3.5
20HH20HH20R4.1HC20HC20R4.2HC20CHC20CR4.4
25HH25HH25R5.3HC25HC25R5.3HC25CHC25CR5.6
30HH30HH30R7.3HC30HC30R7.7HC30CHC30CR7.9

Note: Hose bore is 6.6 mm and outside diameter is 12.7 mm
