Manifolds

Distribution Blocks

  • Designed for easy control of the direction of flow of the hydraulic fluid within the system
  • Available as open manifold blocks or with individual needle type shut off/throttle valves on each outlet
Enquire now

Product Overview

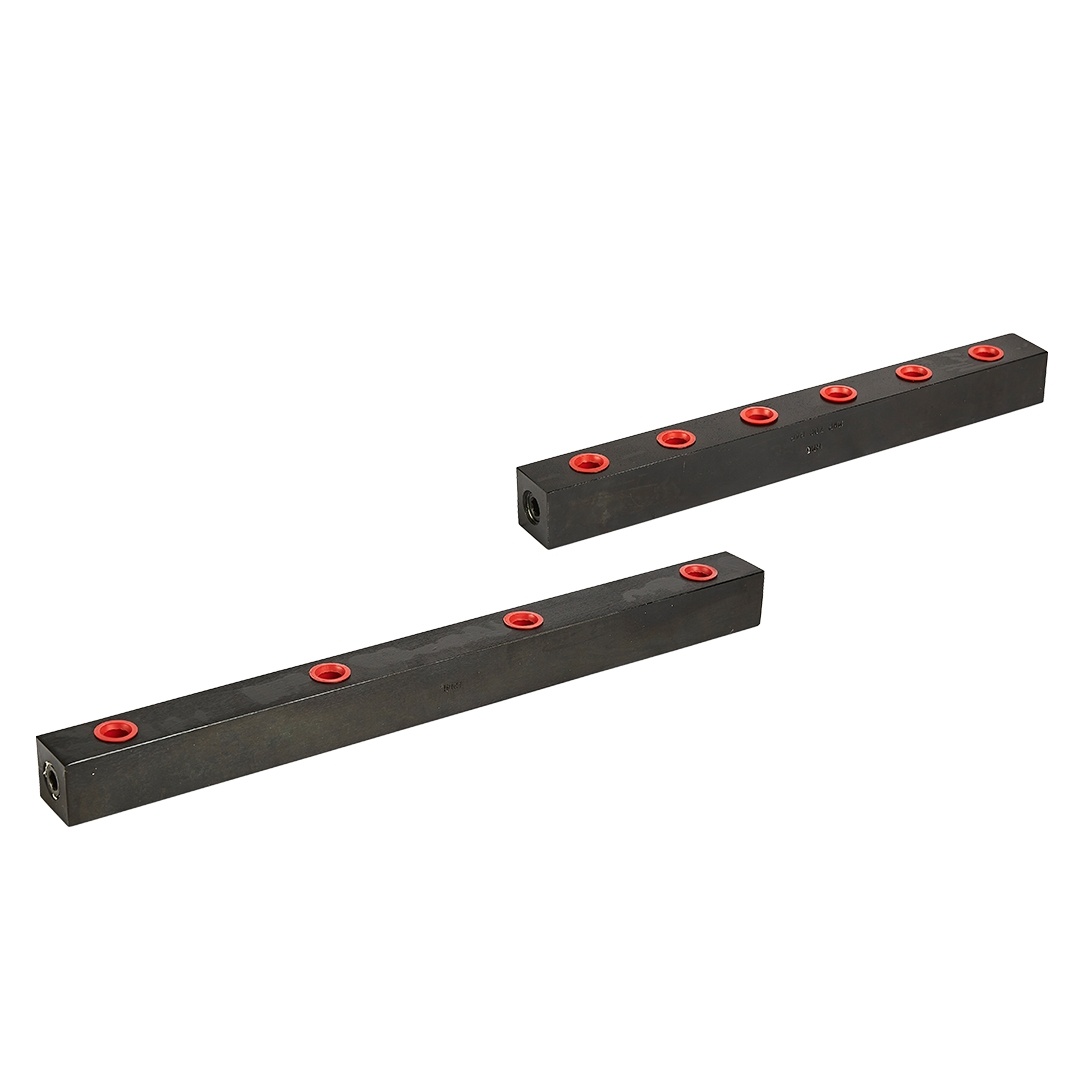

Hi-Force manifolds are designed specifically to allow easy control of the direction of flow of the hydraulic fluid within the system. Supplied either as open manifold blocks or with individual needle type shut off/throttle valves on each 3/8” NPT outlet, Hi-Force manifolds provide even greater versatility in your hydraulic system. The range offers 8 models with a choice of up to 8 outlets per manifold and all models are suitable for 700 bar maximum working pressure.

  • Working pressure 700 bar
  • Choice of open or controlled manifolds
  • 2, 4, 6 or 8 outlet port models available

Manifolds

Model NumberTypeDesignNumber of OutletsFemale ThreadsWeight kg
InletOutlet
HM2manifoldparallel23/8"-18NPT2 x 3/8"-18NPT1.0
HM4manifoldparallel43/8"-18NPT4 x 3/8"-18NPT1.5
HM6manifoldparallel63/8"-18NPT6 x 3/8"-18NPT2.0
HM8manifoldparallel83/8"-18NPT8 x 3/8"-18NPT2.5
HM4Lmanifoldextended parallel43/8"-18NPT4 x 3/8"-18NPT2.4
HM6Lmanifoldextended parallel63/8"-18NPT6 x 3/8"-18NPT3.7
HM2Ccontrolled manifoldparallel23/8"-18NPT2 x 3/8"-18NPT2.0
HM4Ccontrolled manifoldparallel43/8"-18NPT4 x 3/8"-18NPT3.5

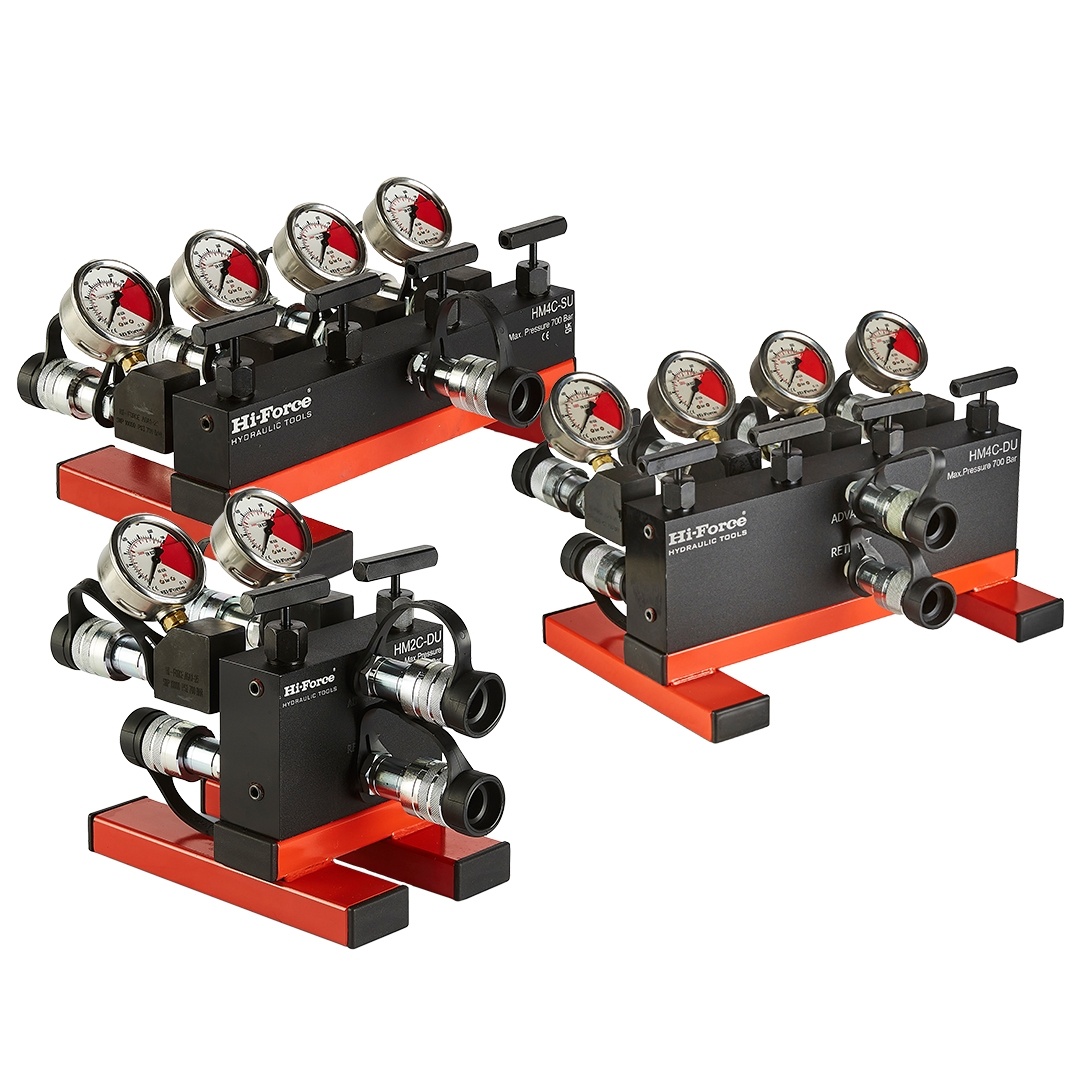

Controlled Manifold Assemblies

ModelNumberTypeWeight kg
HM2C-SU2-Way controlled manifold unit, suitable for single acting systems2.0
HM2C-DU2-Way controlled manifold unit, suitable for double acting systems3.0
HM4C-SU4-Way controlled manifold unit, suitable for single acting systems3.5
HM4C-DU4-Way controlled manifold unit, suitable for double acting systems6.0

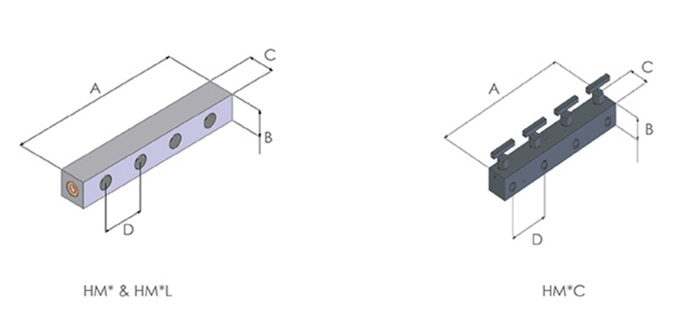

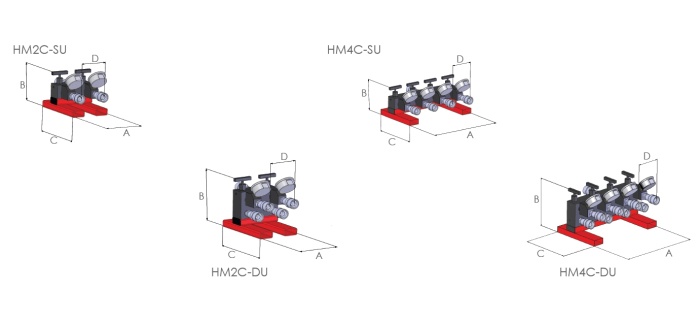

Dimension

Hi force dim draw system components controlled manifolds
Hi force dim draw system components manifolds

Dimensions (mm)

ModelNumberABCDEF
HM2114323250--
HM4214323250--
HM6314323250--
HM8414323250--
HM4L3943232110--
HM6L6143232110--
HM2C1505138100--
HM4C3505138100--
HM2C-SU1505151100--
HM2C-DU15010251100--
HM4C-SU3505151100--
HM4C-DU35010251100--
