Pressure Transducer and Digital Display | Hi-Force | System… | HES
Hi-Force product

Pressure Transducer and Digital Display

Pressure Transducer & Digital Display Unit

  • IP65 enclosure rating
  • Compact size with large LCD display
  • Suitable gauge mounting blocks available
Enquire now

Product Overview

The Hi-Force HPT1 pressure transducer offers an economical solution for precise pressure measurement in many different applications. Offering an accuracy of 0.5%, this universal pressure transducer is capable of measuring hydraulic pressure up to 700 bar (10,000 psi).

Product resources

  • Pressure readings in bar and psi
  • 0.5% full scale accuracy
  • Maximum working pressure 700 bar

Pressure Transducer

Model NumberPressure Range barPressure Range psiConnection ThreadAccuracy Percentage Full ScaleWeight kg
HPT10-7000-100001/4"-18NPT0.50.1

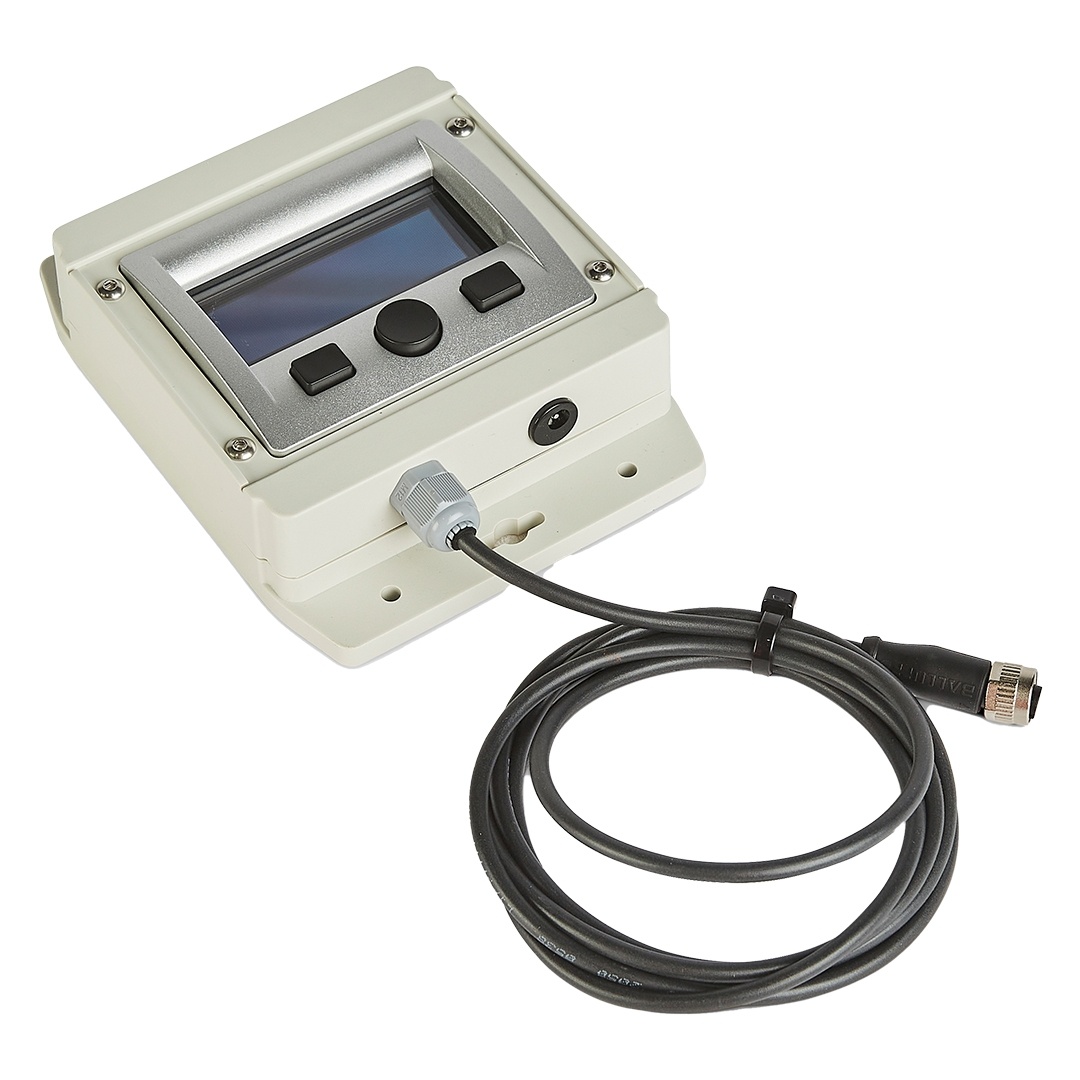

Digital Display Unit

Model NumberPressure Reading barPressure Reading psiDisplay size L x H mmOverall size L x W x H mmVoltage VDCWeight kg
HDD10-7000-1000076 x 25120 x 110 x 4018 - 320.3
