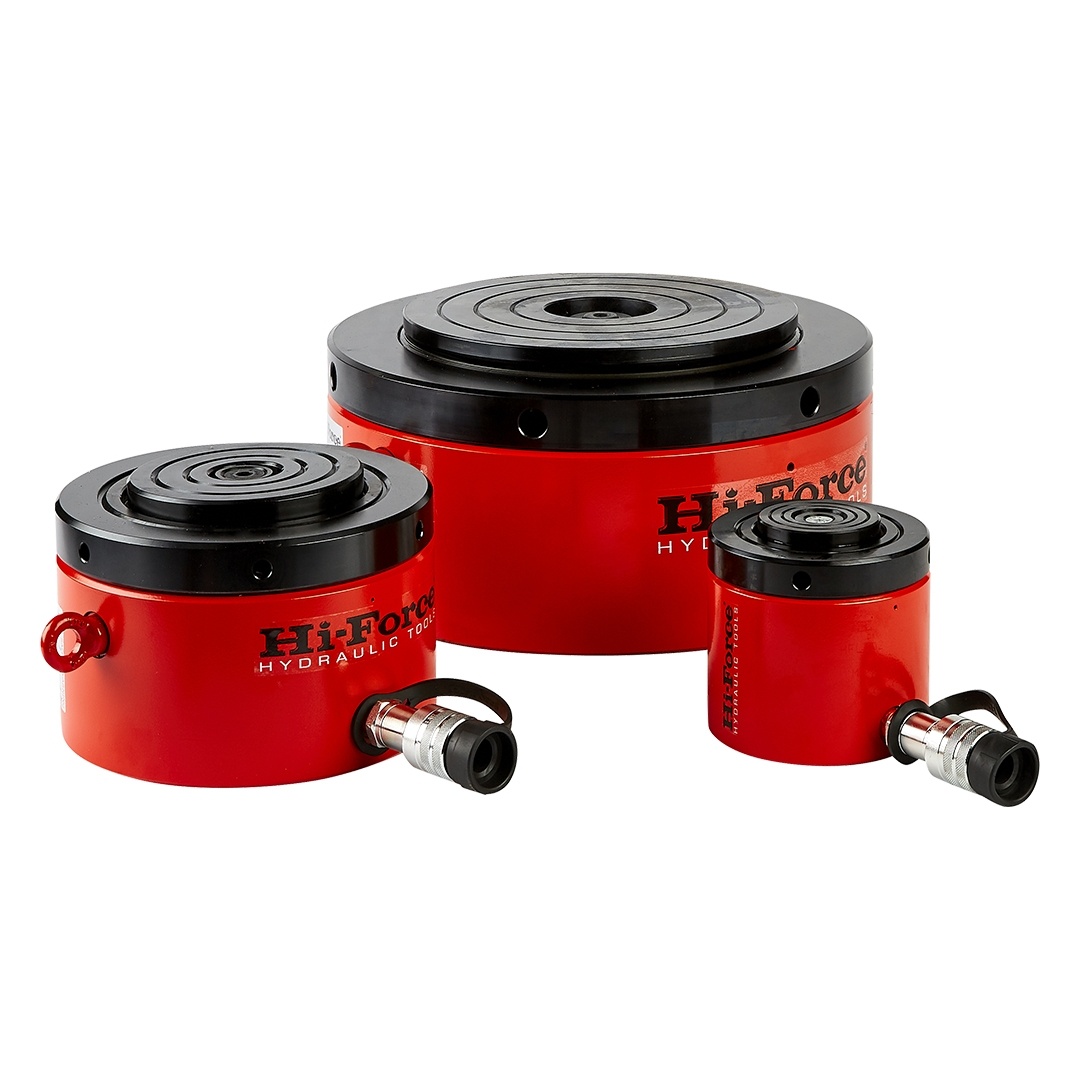

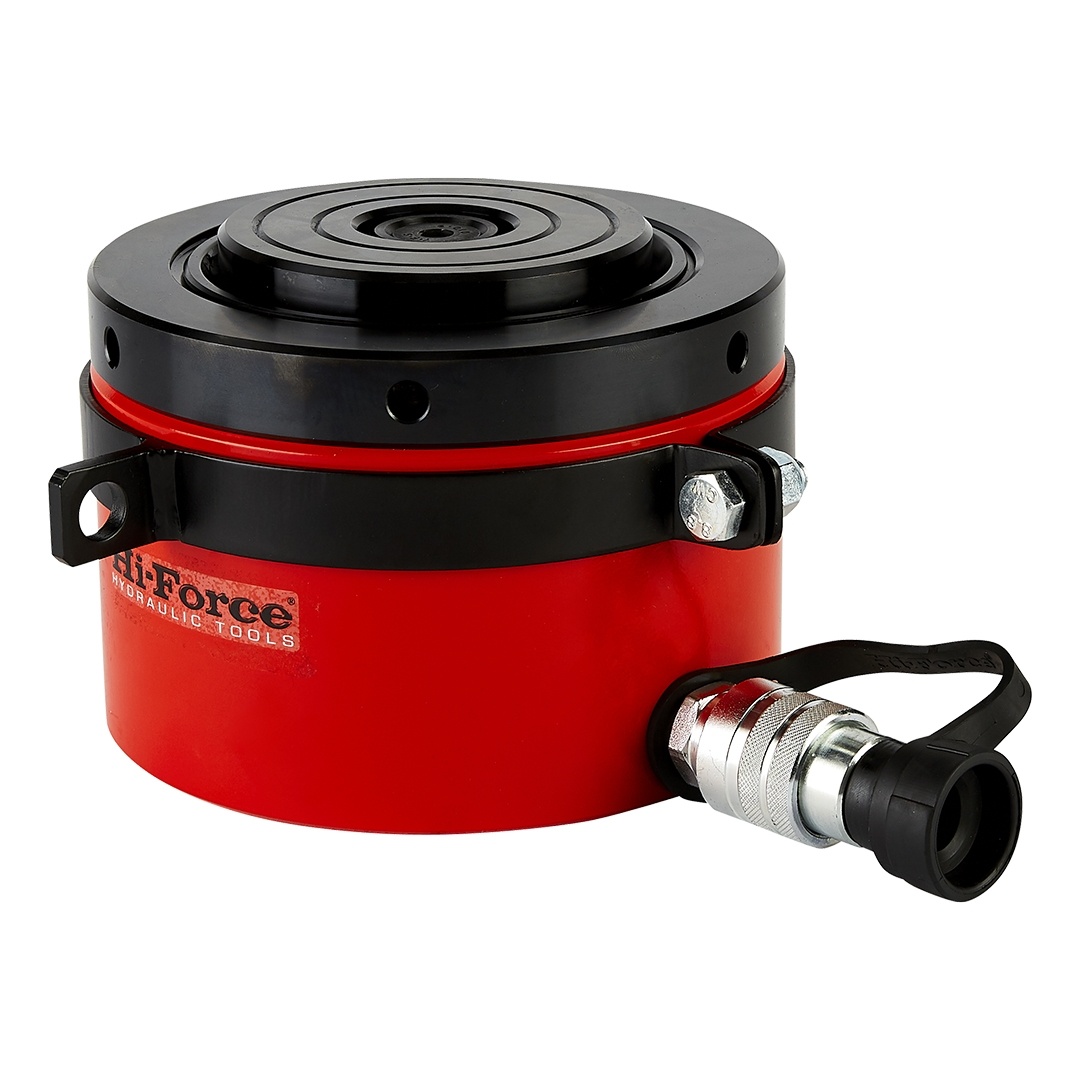

HFL Range

Single acting failsafe lock ring cylinders

  • Single acting load return design
  • Tilting saddle fitted as standard
  • Overstroke restrictor port
  • Customised and special design cylinders are available on request
Enquire now

Product Overview

The HFL low height single acting failsafe lock ring cylinder range combines all the versatility and efficiency of hydraulic power with the safety of mechanical load support, offering a sustainable lifting force in very confined work areas. Ideally suited for applications requiring load holding for extended periods, such as bridge support work. The HFL range features a single acting load return piston, threaded throughout its stroke length to suit the threaded mechanical load holding lock ring. All models are suitable for vertical lifting only and are supplied with tilting saddles as standard.

  • Capacities from 50 to 520 tonnes
  • Stroke lengths from 45 to 51 mm
  • Working pressure 700 bar

Product resources

More Product resources

Technical specifications

Model NumberCapacity tonnesStroke mmOil cap. litresCyl. eff. area cm2Weight kgTommy bar
HFL50250510.3671.314.2TTB10
HFL1002109500.77153.427.9TTB10
HFL1502152451.07214.344.0TTB10
HFL2002203451.42285.156.8TTB14
HFL2502260451.65366.169.4TTB14
HFL4002398452.51559.0121.0TTB16
HFL5002520453.29729.9186.0TTB20

Dimension

Hi force dim draw cylinders HFL

Dimensions (mm)

Model NumberABCDE
HFL502125127957019
HFL100213718514011520
HFL150215021616513528
HFL200215525419013530
HFL250215927321620031
HFL400217836026726036
HFL500219240030529043
