Hi-Force product

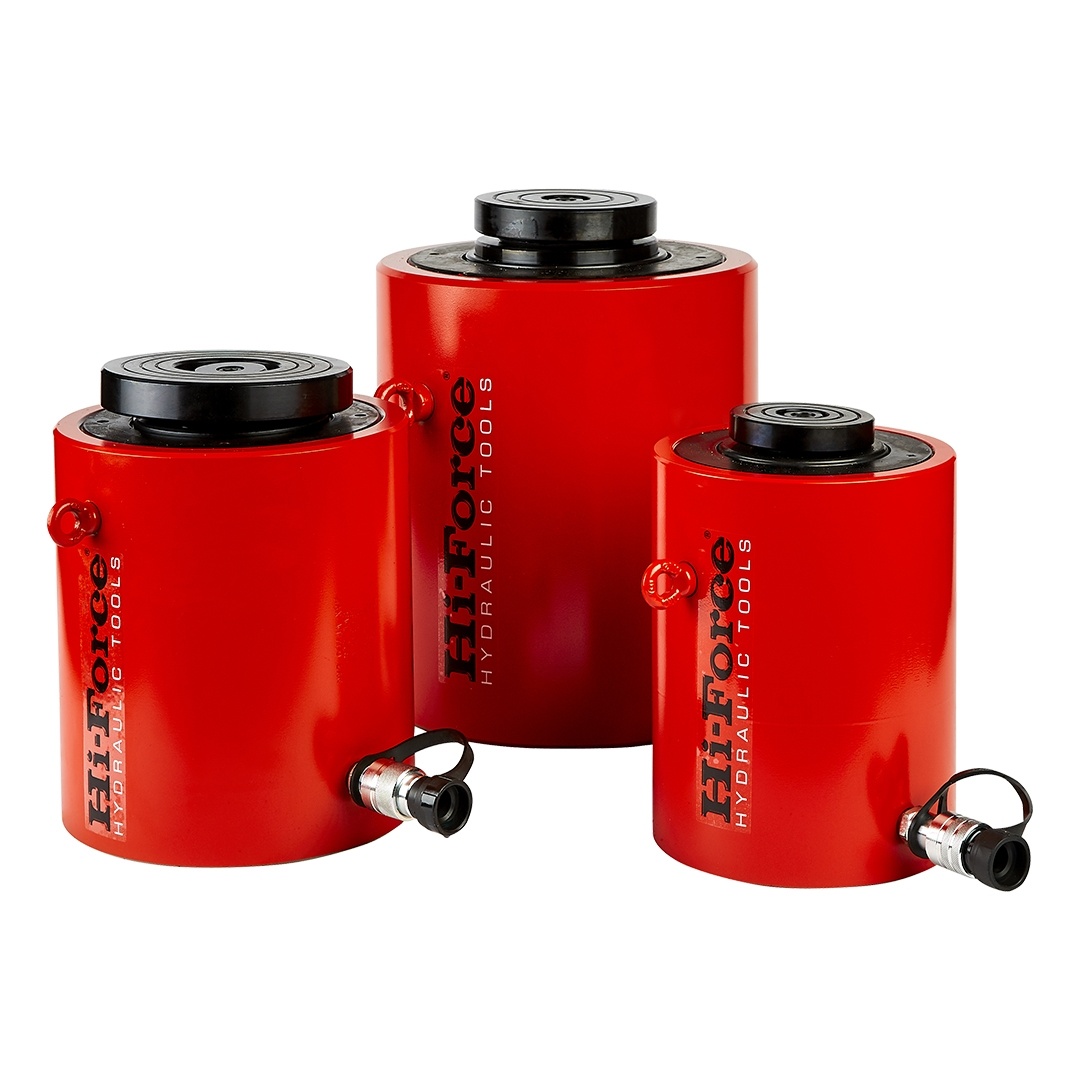

HGG Range

Single Acting Load Return

  • Single acting, load return
  • Integral stop ring for piston stroke limitation
  • Tilting saddle fitted as standard
  • Customised and special design cylinders are available on request
Enquire now

Product Overview

The HGG range of load return industrial cylinders is specifically designed for lifting and maintenance applications. All models are supplied with a tilting saddle to reduce the risk of damage caused by side loading and an integral stop ring for stroke limitation is fitted as standard. Standard range models are featured here however additional capacities and stroke options are available on request.

  • Capacities from 152 to 326 tonnes
  • Stroke length 155 mm
  • Working pressure 700 bar

Technical specifications

Model NumberCapacity tonnesStroke mmOil cap. litresCyl. eff. area cm2Weight kg

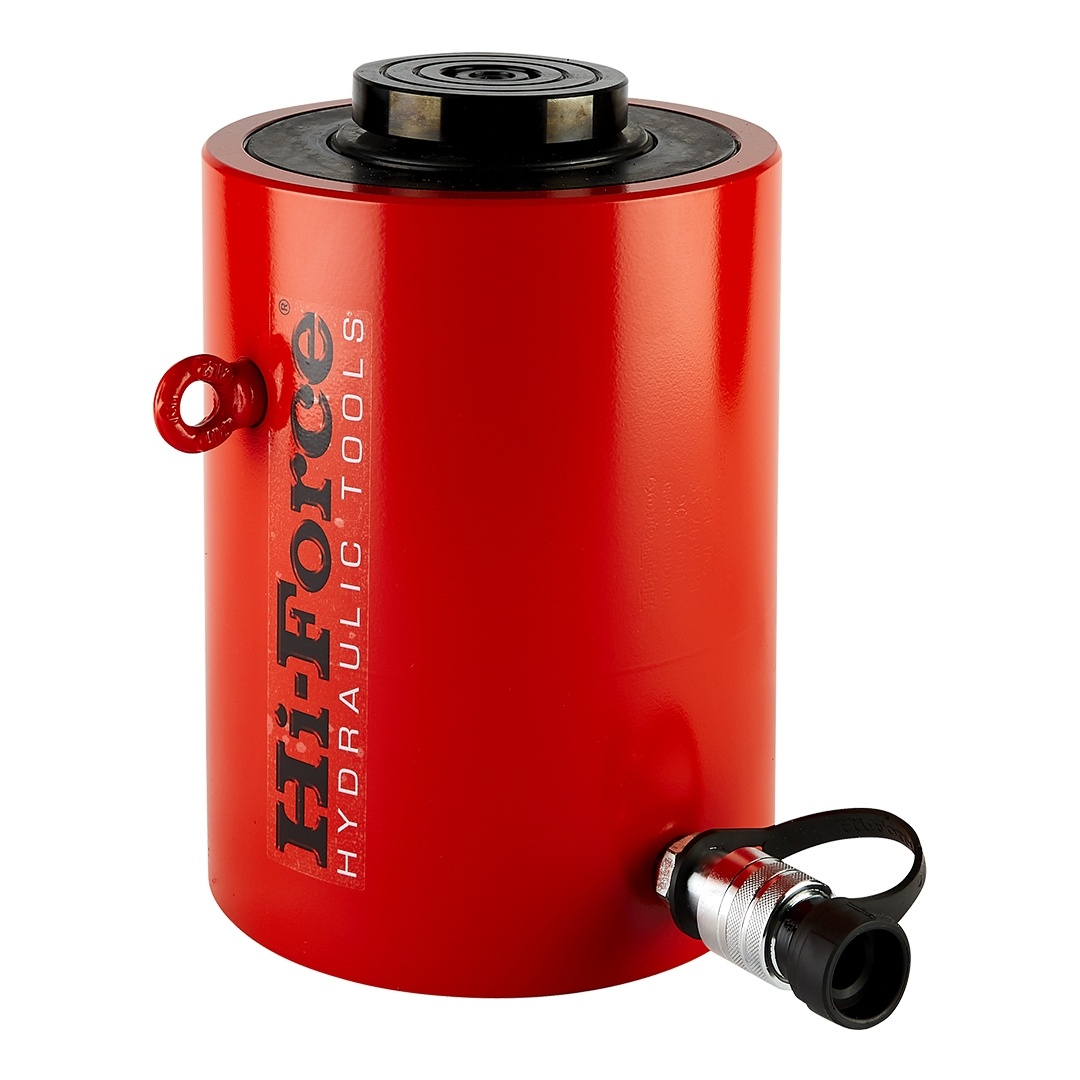

HGG15061521553.32214.358.3

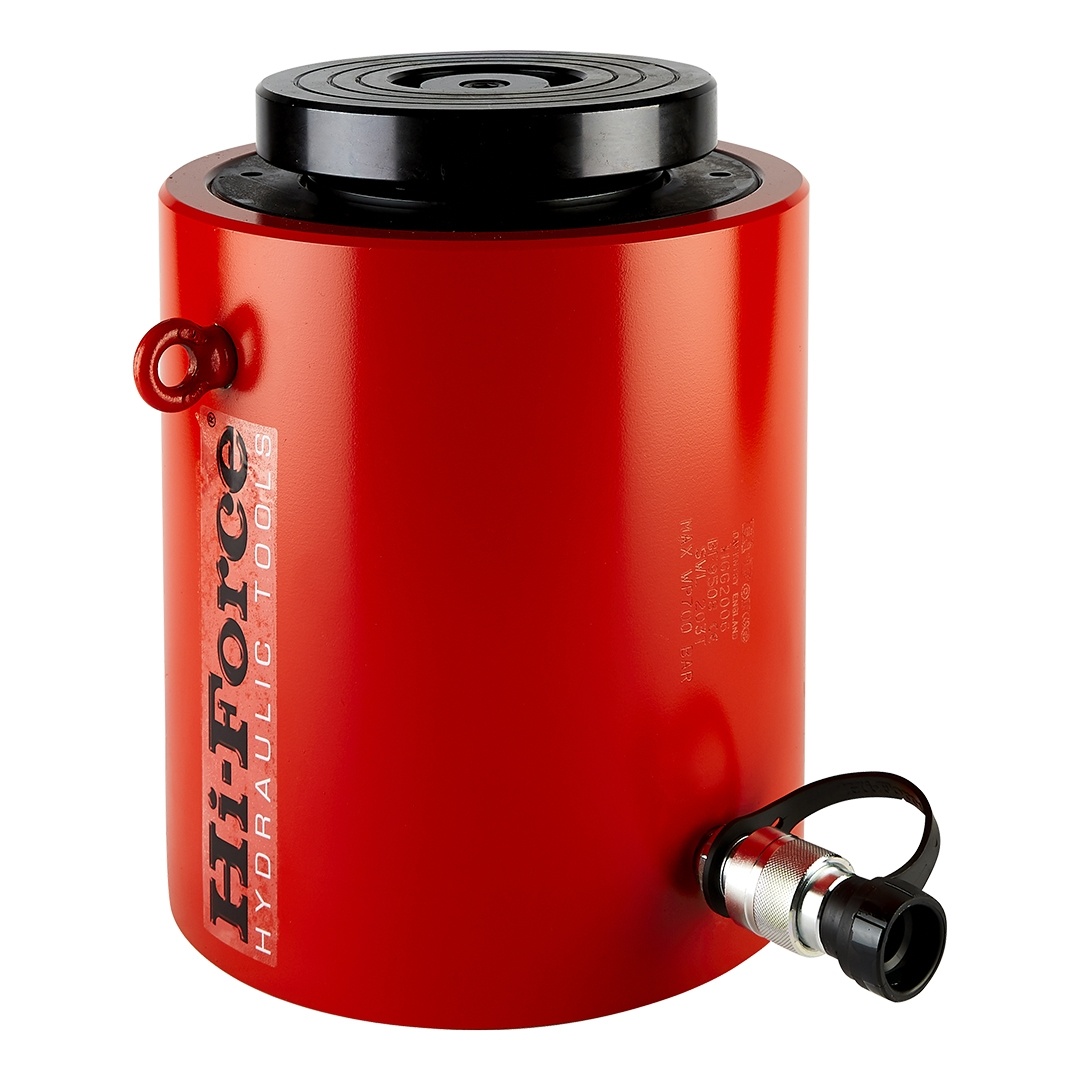

HGG20062031554.63285.195.3
HGG30063261557.1457.7153.5

Dimension

Hi force dim draw cylinders HGG

Dimensions (mm)

Model numberABCDE
HGG150629721014410037
HGG200630625414013550
HGG300634331216515050
