HPC Range

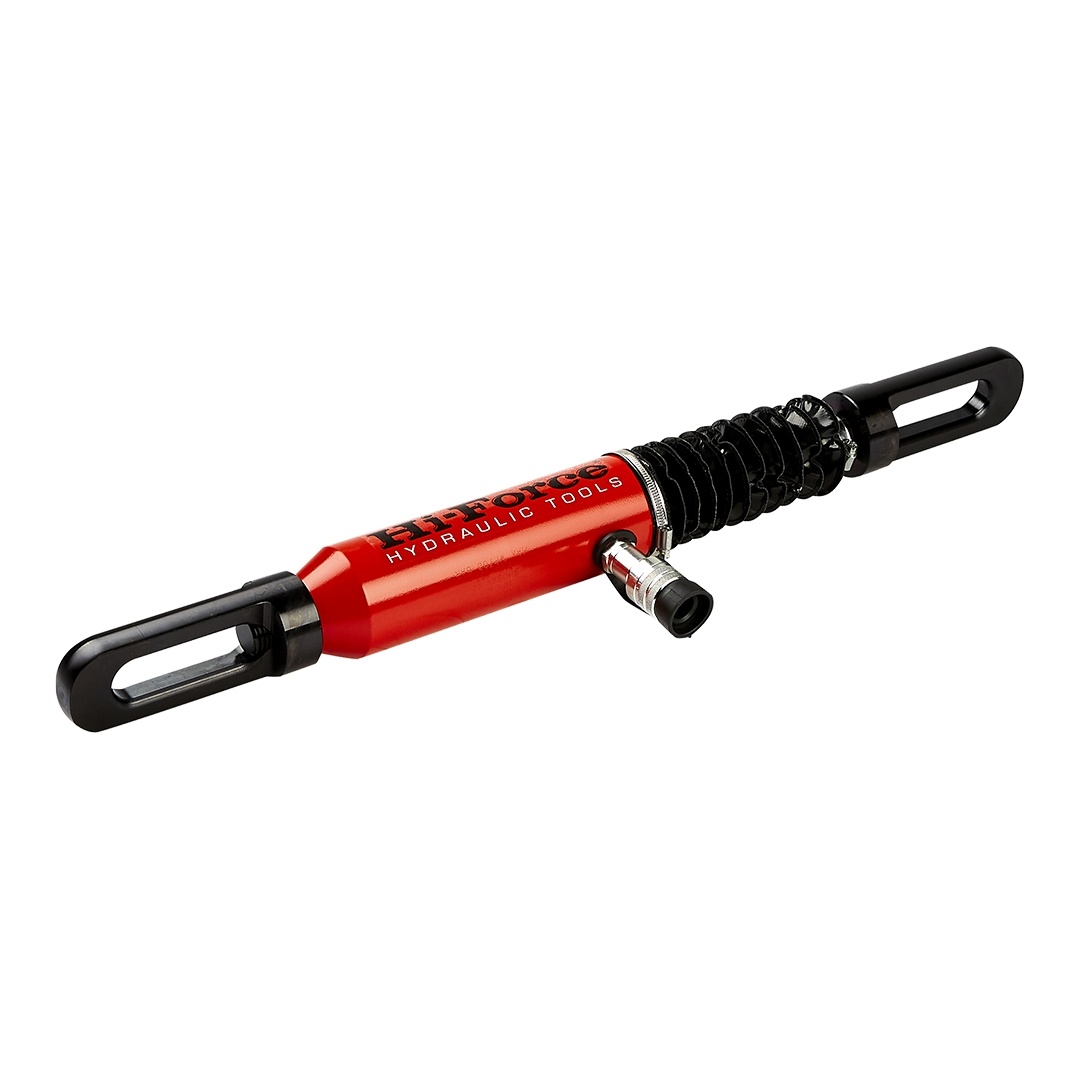

Single Acting Pull Cylinders

  • Spring assisted return
  • Surface treated piston rod
  • Replaceable pulling and clevis eyes
  • Piston wiper prevents contamination
  • Protective bellows fitted as standard
  • Customised and special design cylinders are available on request
Enquire now

Product Overview

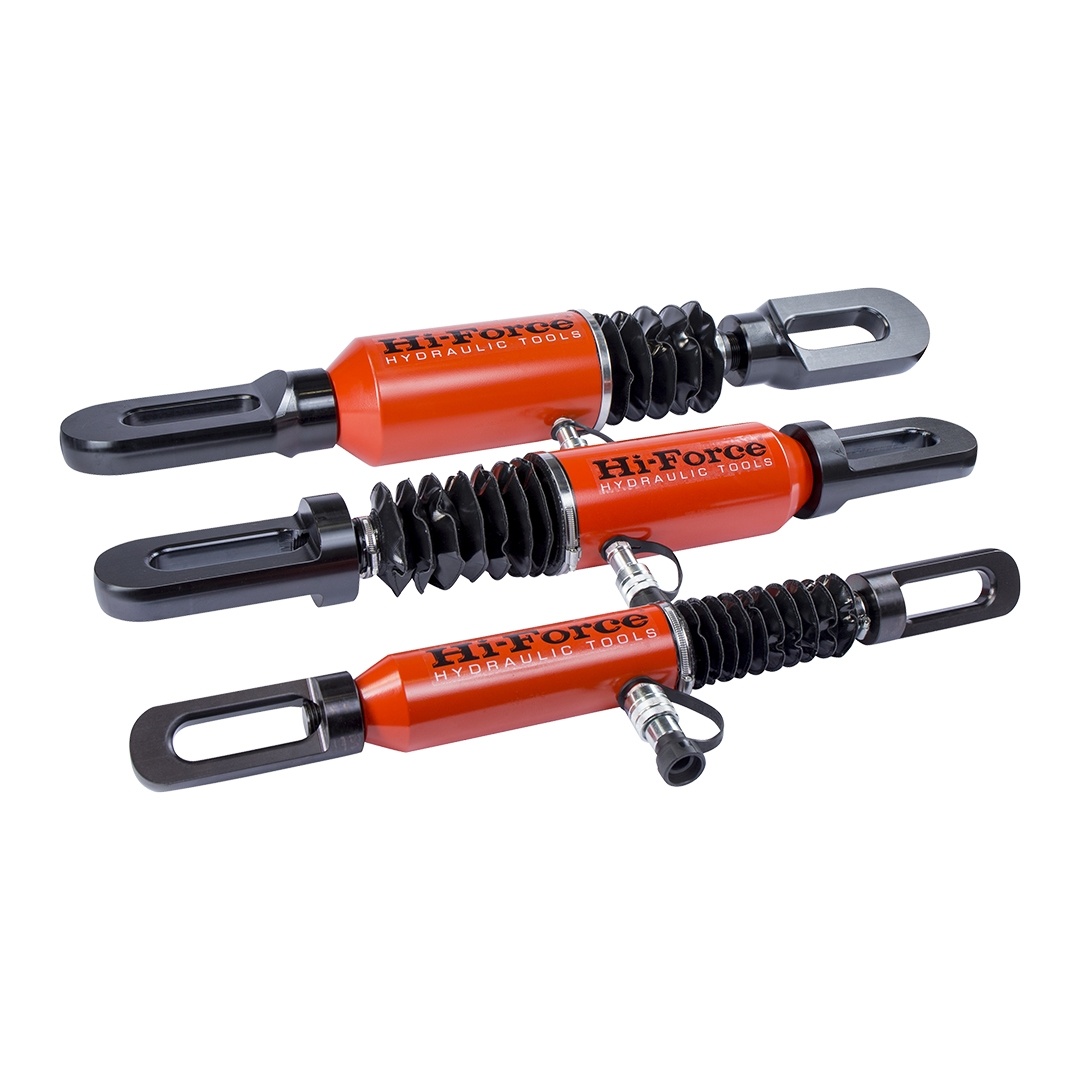

The HPC pull cylinder range comprises of four models, with capacities ranging from 10 tonnes to 50 tonnes of pulling force. All models are 700 bar maximum working pressure and feature a single acting, spring assisted return piston, with a 152 mm stroke length. Fitted with easily replaceable machined pulling eyes on the piston rod and cylinder base, the 10 tonnes capacity version can also be supplied with clevis eye attachments. Typical applications for HPC pull cylinders are plate alignment prior to welding in shipyards, cable tensioning and heavy load moving using chains or wire ropes.

  • Capacities from 10 to 50 tonnes
  • Stroke length 152 mm
  • Working pressure 700 bar

Technical specifications

Model NumberCapacity tonnesStroke mmOil cap. cm3Cyl. eff. area cm2Weight kg
HPC1061015222815.012.0
HPC106C1015222815.015.5
HPC3063015263641.831.0
HPC50650152107871.054.0

Dimension

Hi force dim draw cylinders HPC

Dimensions (mm)

Model numberABCDEFGH
HPC106600752114673233-80
HPC106C602754589935303680
HPC3066958471451054250-122
HPC5068199711491305269-153

Services and support

Whether it is choosing the right tool for the job, improving technical and operational knowledge or product maintenance and warranty, HES is here to help.

Tell me more

Enquire now

Want to know more about the range? Our product team are on hand to support you with your requirements. Speak to our team today.

Enquire
