PCS Range | Hi-Force | Cylinders | HES
Hi-Force product

PCS Range

Pump and Cylinder sets

  • 18 standard sets
  • Manual pumps include factory set relief valve
  • Optional piston rod (tilting) saddles are available for most cylinder models
  • Customised and special design cylinders are available on request
Enquire now

Product Overview

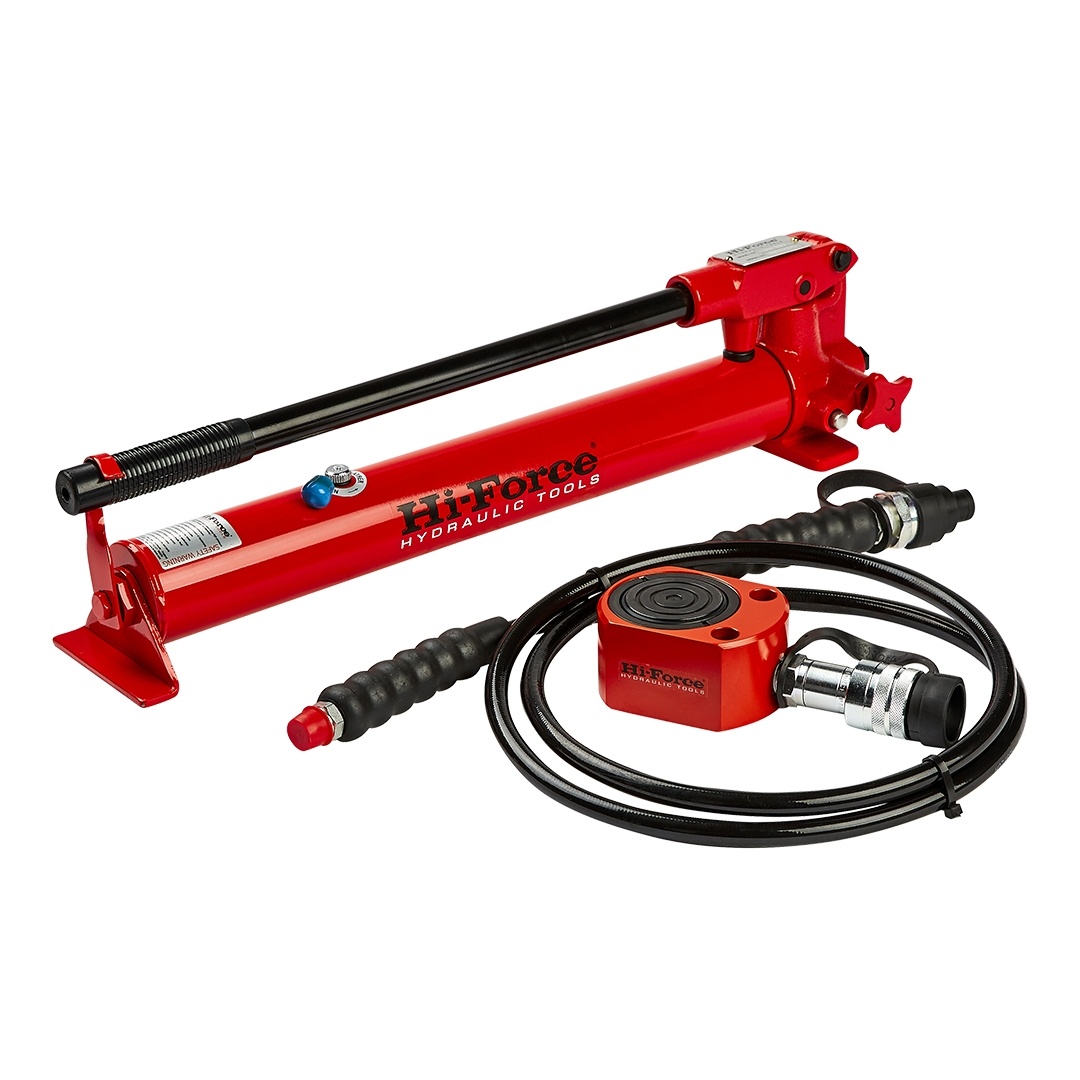

Hi-Force PCS pump and cylinder sets provide the simplest and most cost effective way to start your job immediately. All sets comprise of a Hi-Force hydraulic cylinder (wide choice available), suitable Hi-Force manual pump and a two metre hose with high flow, quick release coupler.

Product resources

  • Capacities from 4.5 to 109 tonnes
  • Stroke lengths from 10 to 153 mm
  • Working pressure 700 bar

Technical specifications

SetPumpCylinderHoseWeight kg
Model NumberCylinder Capacity TonnesModel NumberCapacity LitresModel NumberStroke mmClosed Height mmModel NumberLength Metres
PCS504.5HP1101HPS511642HC227.4
PCS534.5HP1101HSS5375157HC228.0
PCS10010HP1101HPS1001046HC228.2
PCS10110HP1101HLS1014095HC229.0
PCS10210HP1101HSS10256131HC229.0
PCS10610HP1101HSS106150225HC2210.8
PCS20020HP1101HPS2001152HC229.4
PCS20120HP1101HLS20144102HC2211.3
PCS25625HP1101HSS256150273HC2216.0
PCS30032HP1101HPS3001259HC2210.8
PCS30232HP1101HLS30260119HC2213.6
PCS50250HP1101HLS50260126HC2217.0
PCS50650HP2322HSS506152251HC2231.0
PCS1002109HP2322HLS100260143HC2235.5
PCS1006109HP2525HSS1006153274HC2266.0
PCS202H23HP1101HHS20250160HC2213.9
PCS302H33HP1101HHS30250165HC2217.2
PCS603H61HP2322HHS60376226HC2234.6

Note: Models PCS202H, PCS302H & PCS603H are supplied with a hollow piston cylinder
