STS Components - Metric

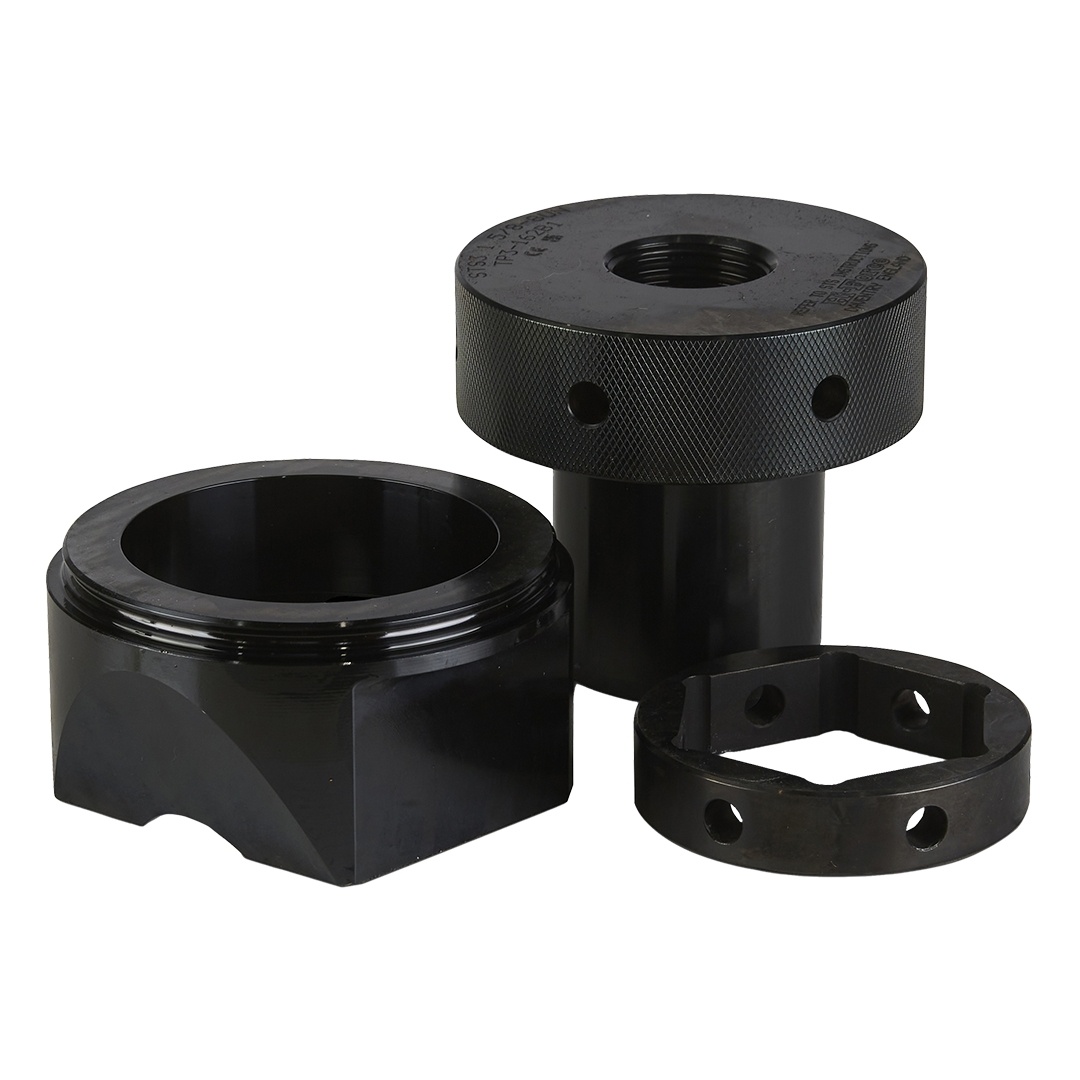

Bolt Tensioner Components - Metric

Enquire now

Product Overview

Similar to the imperial tensioner components, the Hi-Force metric topside hydraulic bolt tensioners are also modular in design and can be adapted to another thread size, within the tensioner range, by purchasing individual components or a simple conversion kit. By changing the required components, Hi-Force STS bolt tensioners offer the user even greater versatility at an economical cost.

Product resources

  • For use with STS Metric Tensioners
  • Modular design for greater flexibility
  • Versatile cost saving option

Technical specifications

Complete TensionerIndividual componentsD & E
Model NumberBolt ThreadA Load cellB Tommy barC BridgeD Threaded pullerE Rotating socketComplete conversion kit
For tensioner range STS1:
STS1-M16B1M16STS1-LCTTB06STS1-B1TP1-M16B1RS1-24B1CK1-M16B1
STS1-M18B1M18STS1-LCTTB06STS1-B1TP1-M18B1RS1-27B1CK1-M18B1
STS1-M20B1M20STS1-LCTTB06STS1-B1TP1-M20B1RS1-30B1CK1-M20B1
STS1-M22B2M22STS1-LCTTB06STS1-B2TP1-M22B2RS1-32B2CK1-M22B2
STS1-M24B2M24STS1-LCTTB06STS1-B2TP1-M24B2RS1-37B2CK1-M24B2
STS1-M27B2M27STS1-LCTTB06STS1-B2TP1-M27B2RS1-41B2CK1-M27B2
For tensioner range STS2:
STS2-M30B1M30STS2-LCTTB08STS2-B1TP2-M30B1RS2-46B1CK2-M30B1
STS2-M33B1M33STS2-LCTTB08STS2-B1TP2-M33B1RS2-51B1CK2-M33B1
STS2-M36B1M36STS2-LCTTB08STS2-B1TP2-M36B1RS2-56B1CK2-M36B1
STS2-M39B1M39STS2-LCTTB08STS2-B1TP2-M39B1RS2-60B1CK2-M39B1
For tensioner range STS3:
STS3-M42B1M42STS3-LCTTB10STS3-B1TP3-M42B1RS3-65B1CK3-M42B1
STS3-M45B1M45STS3-LCTTB10STS3-B1TP3-M45B1RS3-70B1CK3-M45B1
STS3-M48B2M48STS3-LCTTB10STS3-B1TP3-M48B1RS3-75B1CK3-M48B1
STS3-M45B2M45STS3-LCTTB10STS3-B2TP3-M45B2RS3-70B2CK3-M45B2
STS3-M48B2M48STS3-LCTTB10STS3-B2TP3-M48B2RS3-75B2CK3-M48B2
STS3-M52B2M52STS3-LCTTB10STS3-B2TP3-M52B2RS3-80B2CK3-M52B2
For tensioner range STS4:
STS4-M48B1M48STS4-LCTTB10STS4-B1TP4-M48B1RS4-75B1CK4-M48B1
STS4-M52B1M52STS4-LCTTB10STS4-B1TP4-M52B1RS4-80B1CK4-M52B1
STS4-M52B2M52STS4-LCTTB10STS4-B2TP4-M52B2RS4-80B2CK4-M52B2
STS4-M56B2M56STS4-LCTTB10STS4-B2TP4-M56B2RS4-85B2CK4-M56B2
STS4-M60B2M60STS4-LCTTB10STS4-B2TP4-M60B2RS4-90B2CK4-M60B2
STS4-M64B2M64STS4-LCTTB10STS4-B2TP4-M64B2RS4-95B2CK4-M64B2
For tensioner range STS5:
STS5-M64B1M64STS5-LCTTB14STS5-B1TP5-M64B1RS5-95B1CK5-M64B1
STS5-M68B1M68STS5-LCTTB14STS5-B1TP5-M68B1RS5-100B1CK5-M68B1
STS5-M72B1M72STS5-LCTTB14STS5-B1TP5-M72B1RS5-105B1CK5-M72B1
STS5-M76B1M76STS5-LCTTB14STS5-B1TP5-M76B1RS5-110B1CK5-M76B1
For tensioner range STS6:
STS6-M76B1M76STS6-LCTTB14STS6-B1TP6-M76B1RS6-110B1CK6-M76B1
STS6-M80B1M80STS6-LCTTB14STS6-B1TP6-M80B1RS6-115B1CK6-M80B1
STS6-M85B1M85STS6-LCTTB14STS6-B1TP6-M85B1RS6-120B1CK6-M85B1
STS6-M90B1M90STS6-LCTTB14STS6-B1TP6-M90B1RS6-130B1CK6-M90B1
STS6-M95B3M95STS6-LCTTB14STS6-B3TP6-M95B3RS6-135B3CK6-M95B3
STS6-M100B3M100STS6-LCTTB14STS6-B3TP6-M100B3RS6-146B3CK6-M100B3

Note: Remember to check bridge compatibility for STS1, STS3, STS4 and STS6 models when ordering components.
