Torque Multipliers

  • Closed-loop transducer delivers a torque accuracy of +/- 5%
  • Brushless motor offers maximum durability
  • USB connection as standard with optional wireless communication for process control and data collections
Enquire now

Product Overview

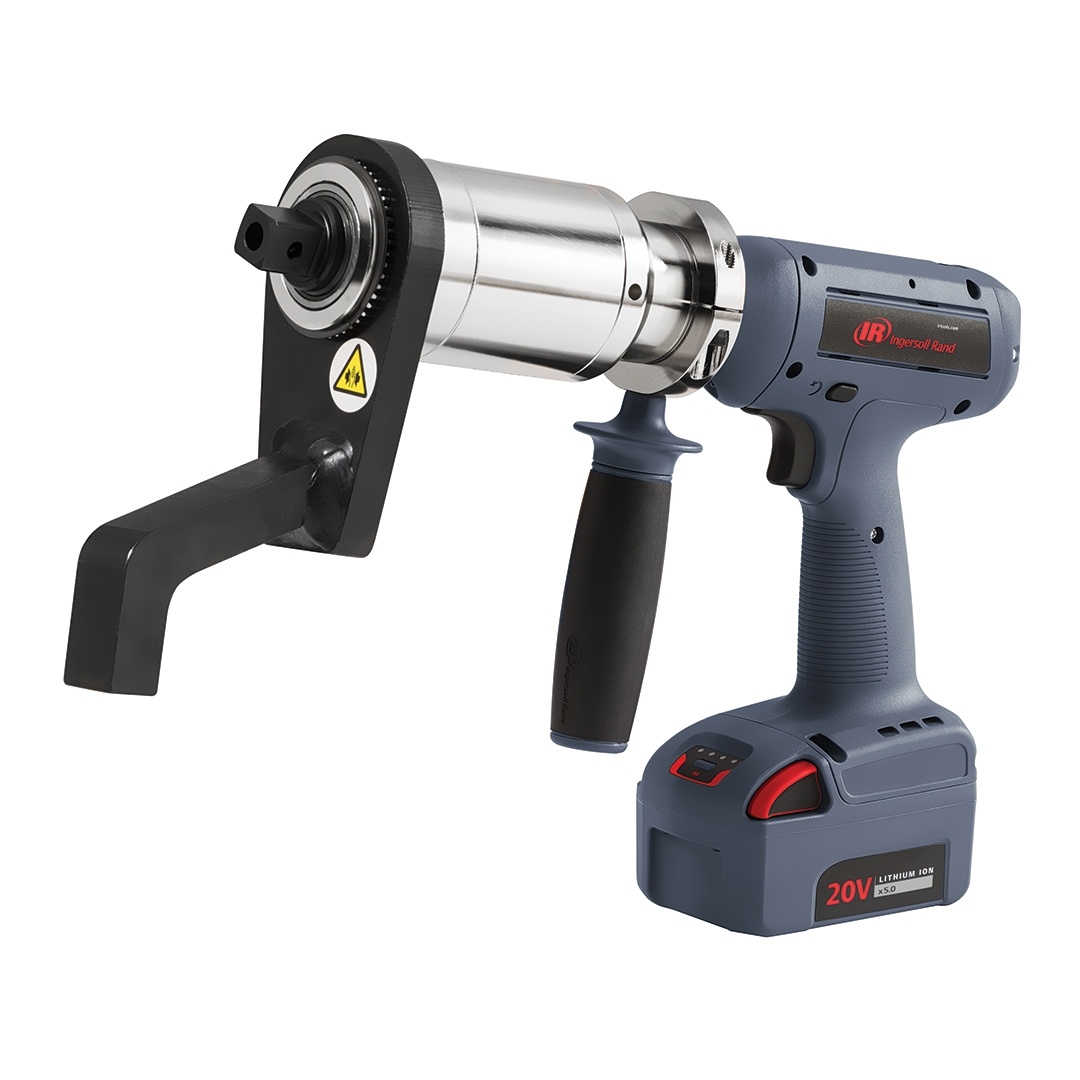

The innovative QX Series™ Cordless Torque Multiplier reduces bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar® gearbox and an efficient, time-tested closed-loop transducer, the range offers proven quality, control and programmable configurations to maximize productivity.

Product resources

  • Recommended torque from 5 up to 2000 Nm (30 up to 1475 ft-lb)
  • Drive sizes of 3/4" and 1"
  • 360° adjustable handle, with 6 mm threaded port for eye hooks

Technical specifications

SeriesRecommended torque NmRecommended torque ft-lbDrive size inRPMVoltageCommunicationWeight kg
QX Series40 - 200030 - 14753/4" & 1"5 - 4520 VUSB & Wireless6.8
QX Angle16 - 162027 - 11953/4" & 1"13 - 11040 VWireless5.97
QX 2 Speed5 - 200030 - 14753/4" & 1"4 - 4520 VUSB & Wireless6.8

Services and support

Whether it is choosing the right tool for the job, improving technical and operational knowledge or product maintenance and warranty, HES is here to help.

Tell me more

Enquire now

Want to know more about the range? Our product team are on hand to support you with your requirements. Speak to our team today.

Enquire

Related products

Air Impact Wrenches

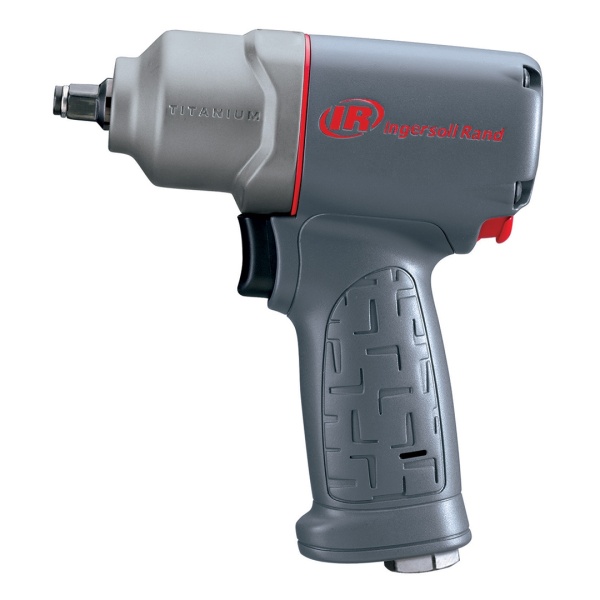

2115 TIMAX Impact Wrench

View

Cordless Tools

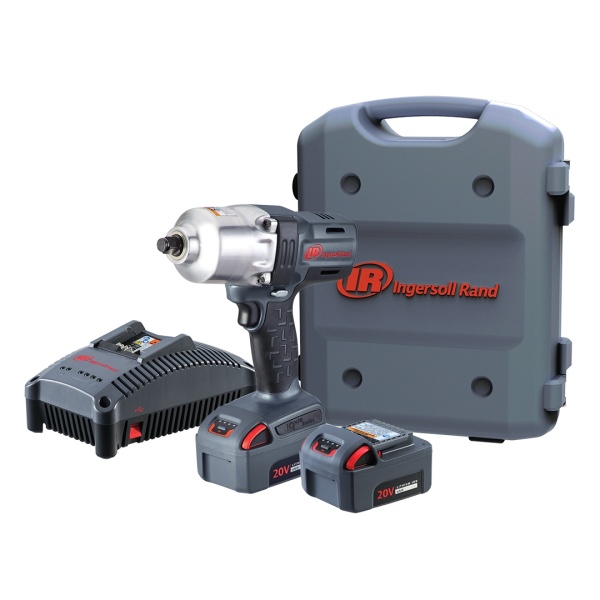

W7150 k22

View

Cordless Precision Fastening Systems

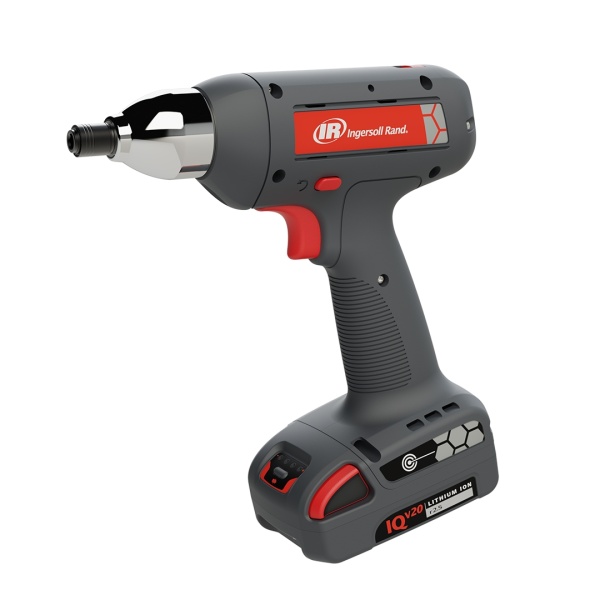

QX Pistol Non ETS
