Winches

  • Ideal for work in harsh environments and trusted worldwide by offshore workers, miners and heavy construction crews
  • Wide choice of models available in a variety of configurations to suit the most challenging applications
Enquire now

Product Overview

Built of rugged cast iron and steel construction, Ingersoll Rand winches are extremely durable and reliable, and combine the best ideas and innovations resulting from over 200 years of experience in solving the most challenging lifting, pulling and positioning applications.

  • Lifting capacities from 150 to 10000 kg
  • Air, electric or hydraulic type winches available
  • Reduces downtimes and robust construction provides long-lasting use

Product resources

Air Winches

SeriesLifting capacityLifting speed m/minRope lengthRope diameterWeight kg
Classic360 - 680 kg14 - 2769 - 288 m 228 - 946 ft6.5 - 8 mm 1/4" - 5/16"222
Infinity2000 - 10000 kg16 - 4880 - 4825 m 265 - 16925 ft13 - 28 mm 1/2" - 1 1/8"1451
Infinity Dual1450 - 2000 kg16 - 53410 - 430 m 1346 - 1435 ft13 - 20 mm 1/2" - 3/4"907
Liftstar & Pullstar300 - 7500 kg4 - 4060 - 473 m 197 - 1043 ft5 - 20 mm 3/16" - 3/4"760
Mining1996 kg16--386
Third Generation1450 - 3600 kg13 - 4363 - 39213 - 20 mm 1/2" - 3/4"569
Third Generation Dual Purpose920 - 3600 kg13 - 62366 - 392 m 1200 - 1287 ft13 - 20 mm 1/2" - 3/4"837
MR150 Man Rider150 kg30180 m 591 ft-210

Electric Winches

SeriesLifting capacityLine speed/minStarting line pull 1st layerStarting line pull 4th layerRunning line pull 1st layerRunning line pull 4th layerWeight kg
Car Puller700 - 2000 kg6.1 - 27.4 mUp to 28545 kg / 62800 lbsUp to 21955 kg / 48300 lbsUp to 12409 kg / 27300 lbsUp to 9545 kg / 21000 lbs1614

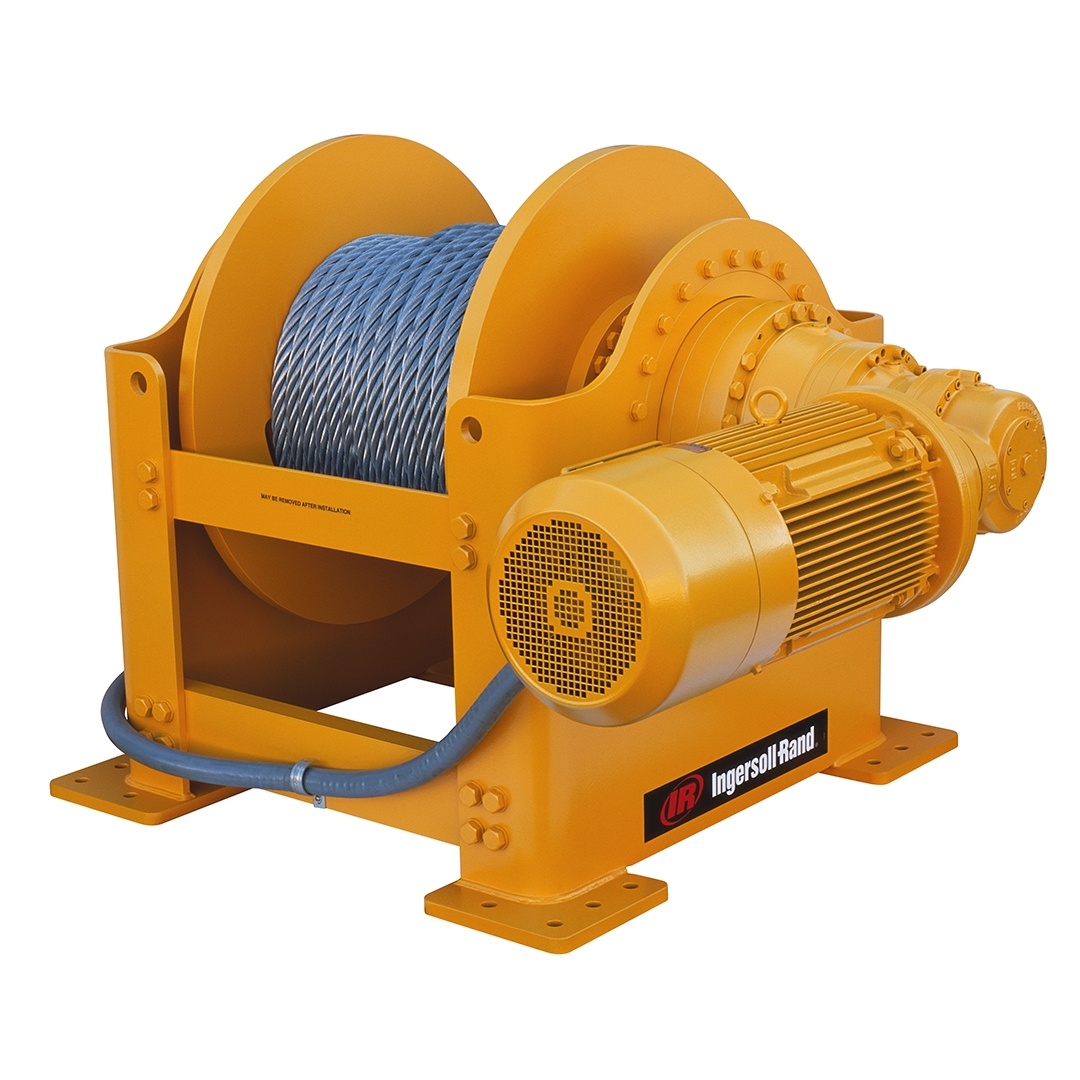

Fulcrum2400 - 20000 kg5 - 11 mUp to 19273 kgUp to 13591 kg---

Hydraulic Winches

SeriesLifting capacityLine speed m/minRope storage capacityDrum lengthRope lengthRope diameterWeight kg

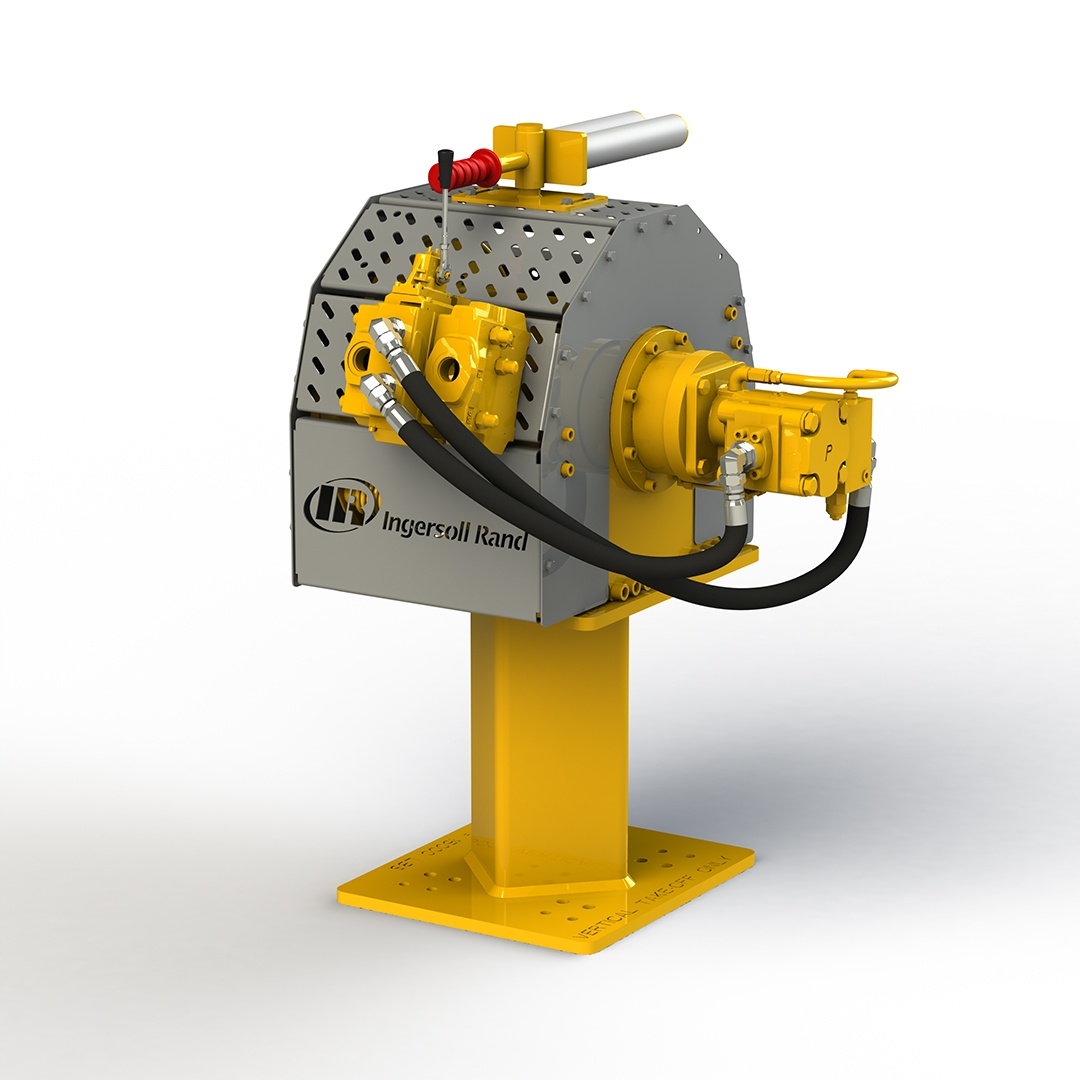

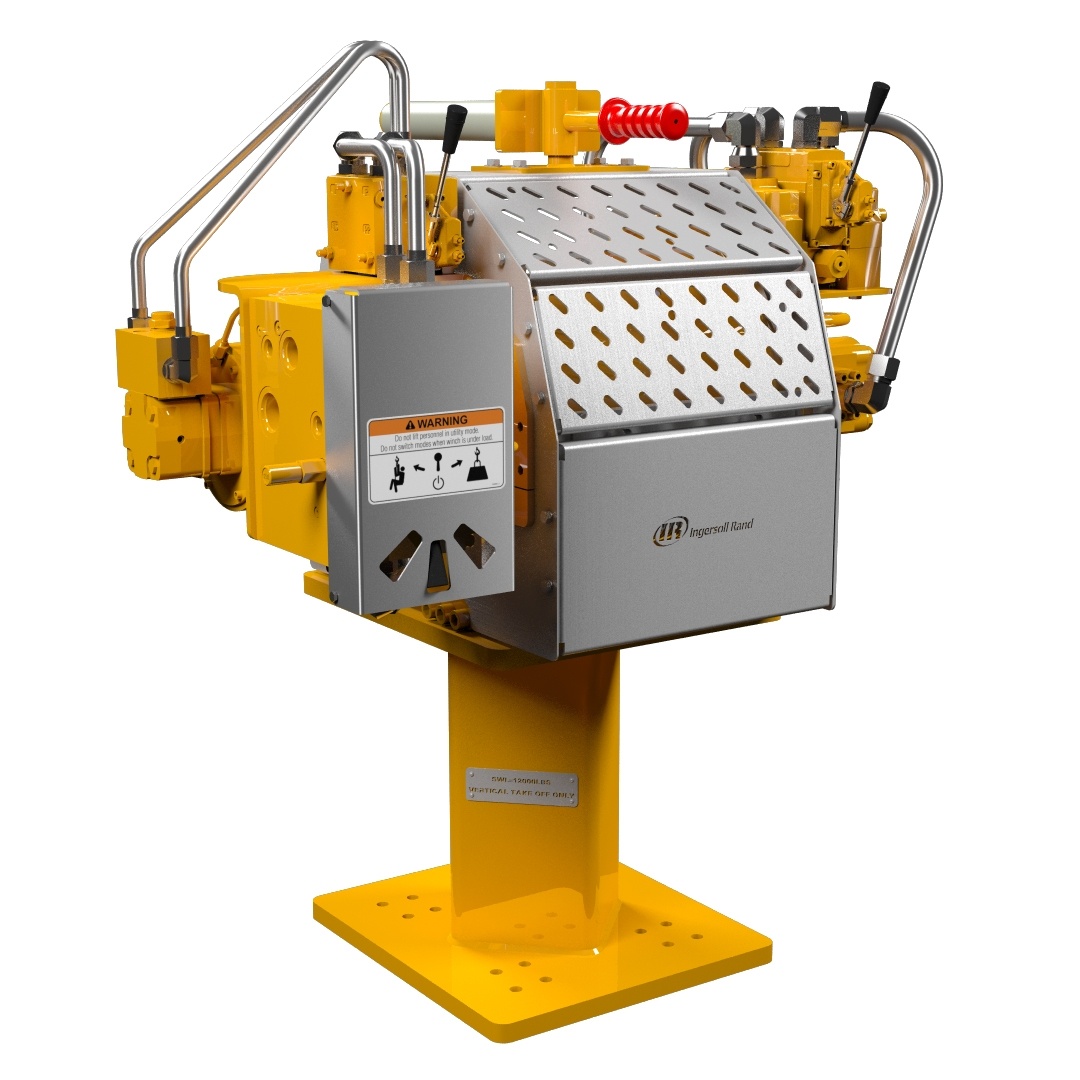

Hydraulic Force450 - 5400140 - 23525 - 155 m 82 - 508 ft147 - 327 mm 5.79" - 13"--272
Liftstar & Pullstar600 - 7000 kg13 - 3089 - 463 m 292 - 1519 ft-89 - 463 m 292 - 1519 ft6.5 - 20 mm 1/4" - 3/4"730
LS2150 Offshore Man Rider150 kg28 - 30154 m 505 ft--10 mm 3/8"380
