Couplers and Fitters

High pressure couplers, fittings & adaptors

  • Suitable for working pressures up to 700 bar
  • Designed to ensure easy system connection and assembly
Enquire now

Product Overview

Hi-Force high pressure couplers and fittings are designed for easy system connection and assembly of your Hi-Force hydraulic equipment. All Hi-Force couplers and fittings are suitable for 700 bar maximum working pressure. Hi-Force recommends the use of threaded dust caps with quick connect couplers to protect the thread of the coupler and at the same time prevent any contaminants entering your hydraulic system. Always specify Hi-Force couplers and fittings for use with your Hi-Force hydraulic tools.

Product resources

    Technical specifications

    Model NumberDescriptionThread Specification

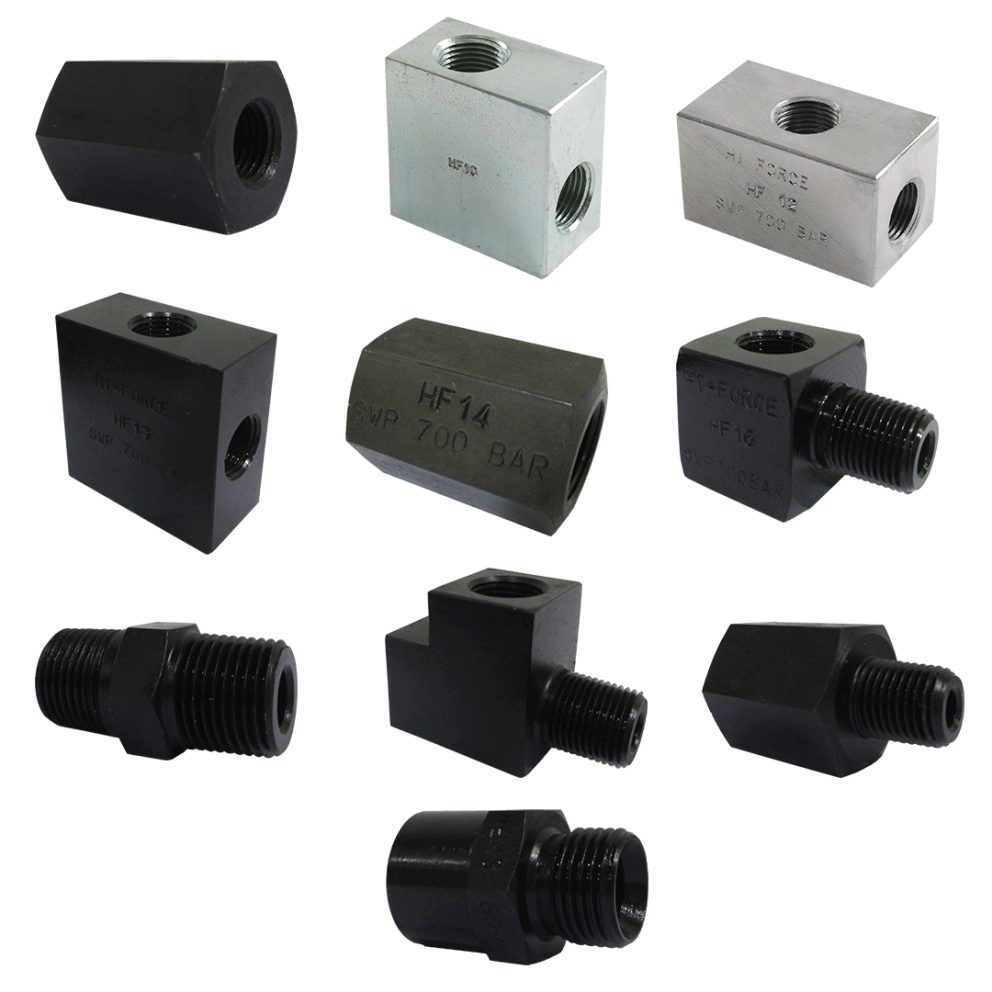

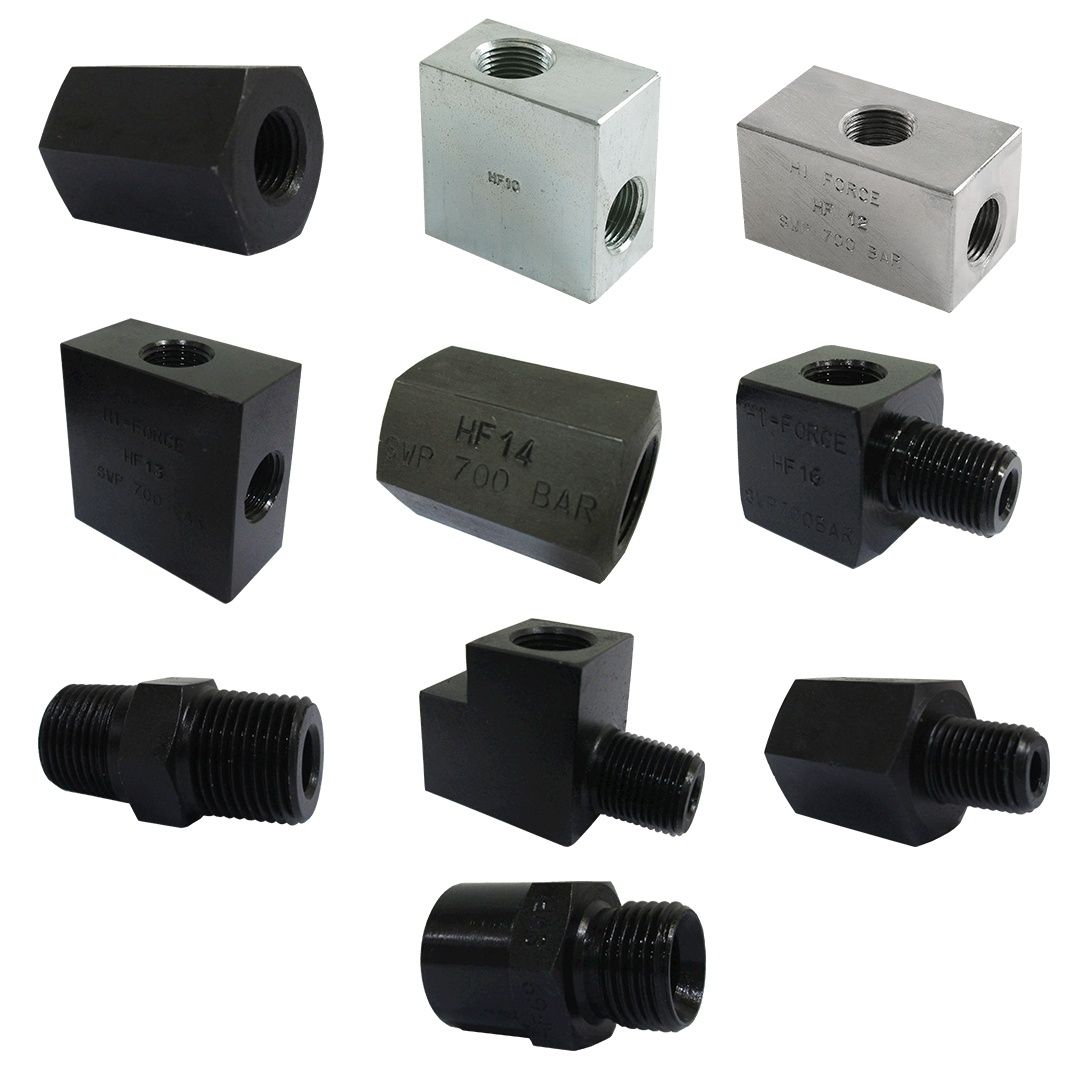

    HF7Nipple1/4" NPT male to 1/4" NPT male
    HF8Adaptor1/4" NPT female to 1/4" NPT female
    HF10Elbow3/8" NPT female to 3/8" NPT female
    HF12Equal tee3/8" NPT female
    HF13Cross3/8" NPT female
    HF14Adaptor3/8" NPT female to 3/8" NPT female
    HF15Reducer3/8" NPT female to 3/8" NPT female
    HF16Elbow3/8" NPT female to 3/8" NPT male
    HF17Nipple3/8" NPT male to 3/8" NPT male
    HF19Long nipple3/8" NPT male to 3/8" NPT male
    HF24Adaptor3/8" NPT male to 3/8" BSP female
    HF27Nipple1/4" NPT male to 3/8" NPT male
    HF30Reducer3/8" NPT male to 1/4" NPT female
    HF31Tee3/8" NPT female to 3/8" NPT male
    HF33Reducer3/8" NPT male to 3/8" BSP male
    HF55Reducer3/8" NPT female to 1/4" NPT male
    HF69Adaptor1/2" BSP male to 3/8" NPT female

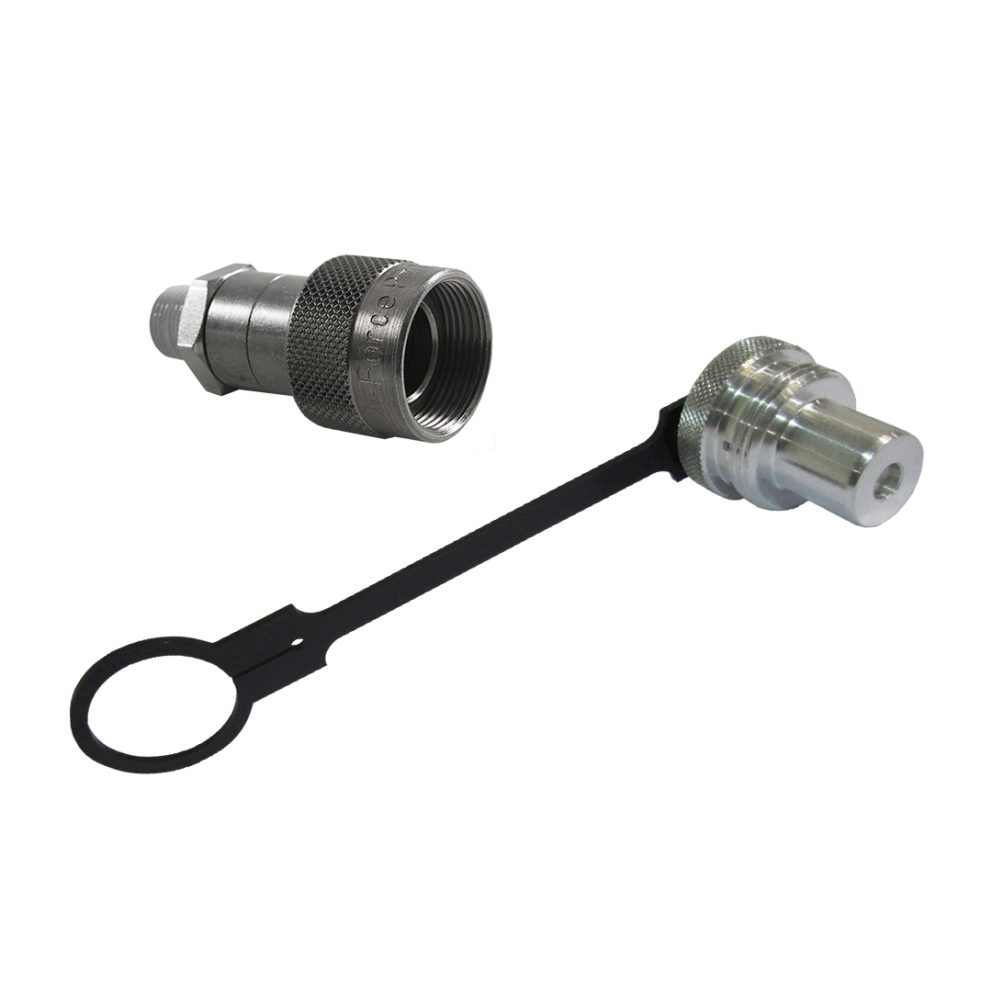

    CF1Female coupler3/8" NPT male

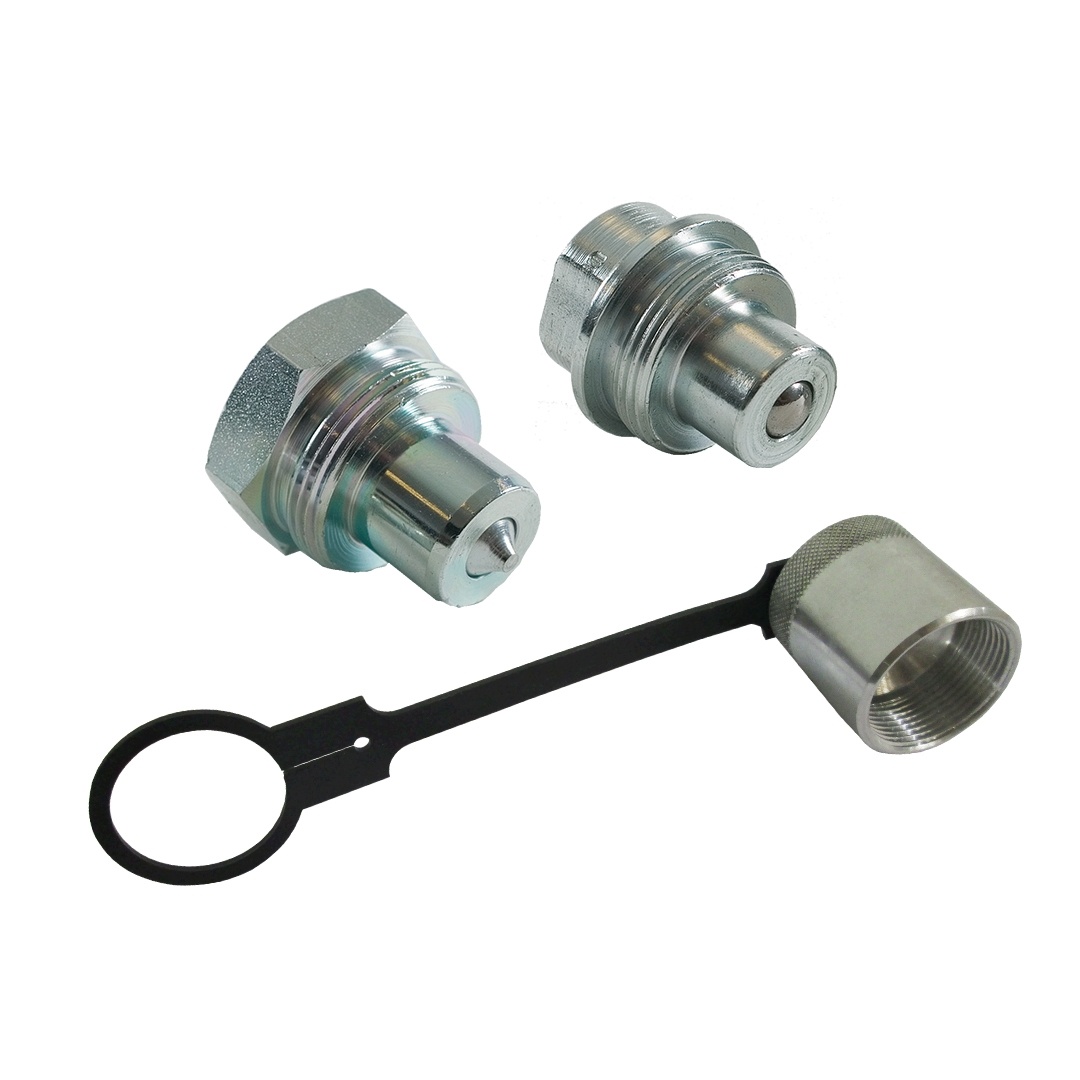

    CM1Male coupler3/8" NPT female
    CMF1Complete coupler3/8" NPT
    CF2Female coupler1/4" NPT male
    CM2Male coupler1/4" NPT female
    CMF2Complete coupler1/4" NPT
    CFD1Metal dust cap for CF1
    CMD1Metal dust cap for CM1
    CFD2Metal dust cap for CF2
    CMD2Metal dust cap for CM2

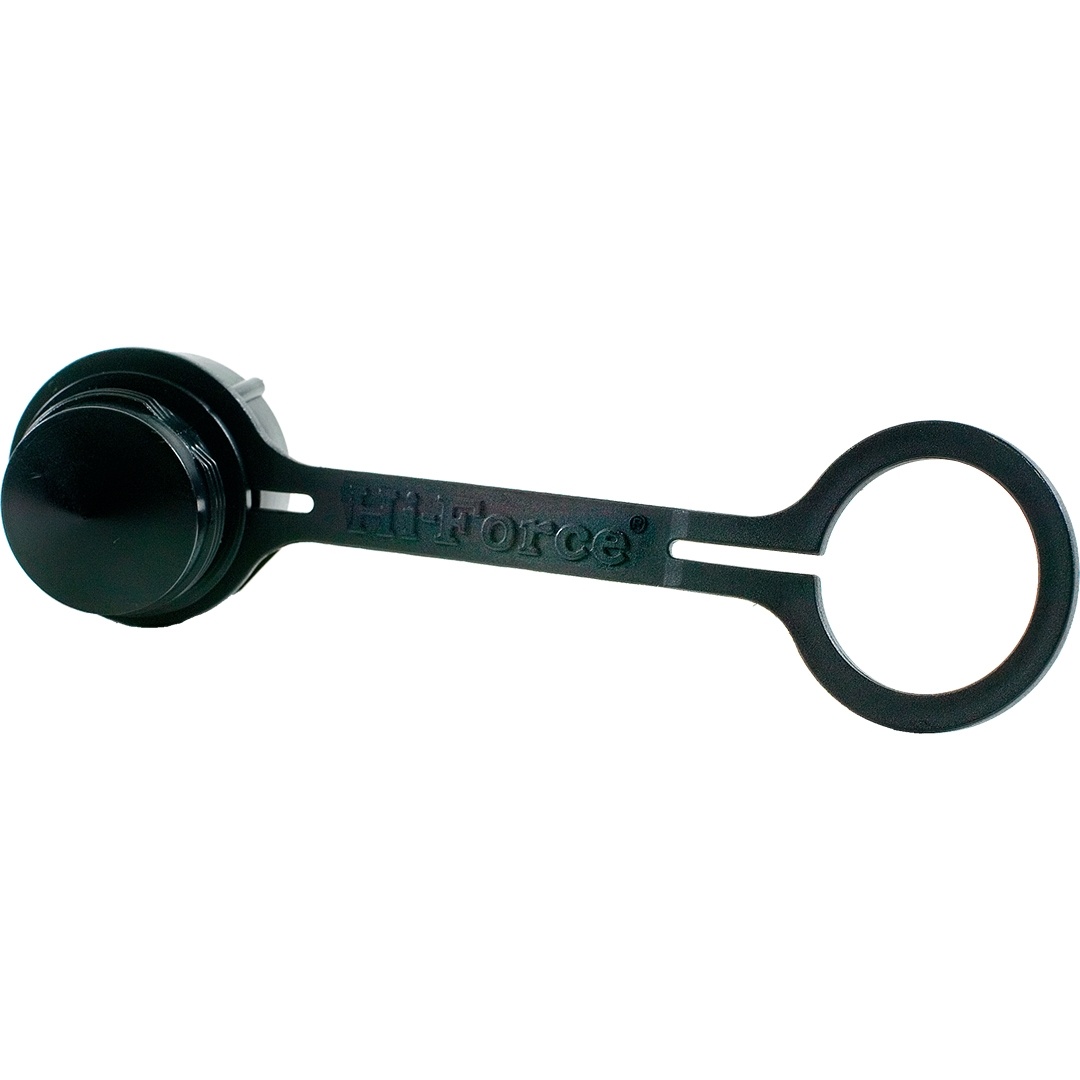

    PPC1Moulded universal dust cap to suit CF1 & CM1
