Directional Control Valves | Hi-Force | System Components | HES
Hi-Force product

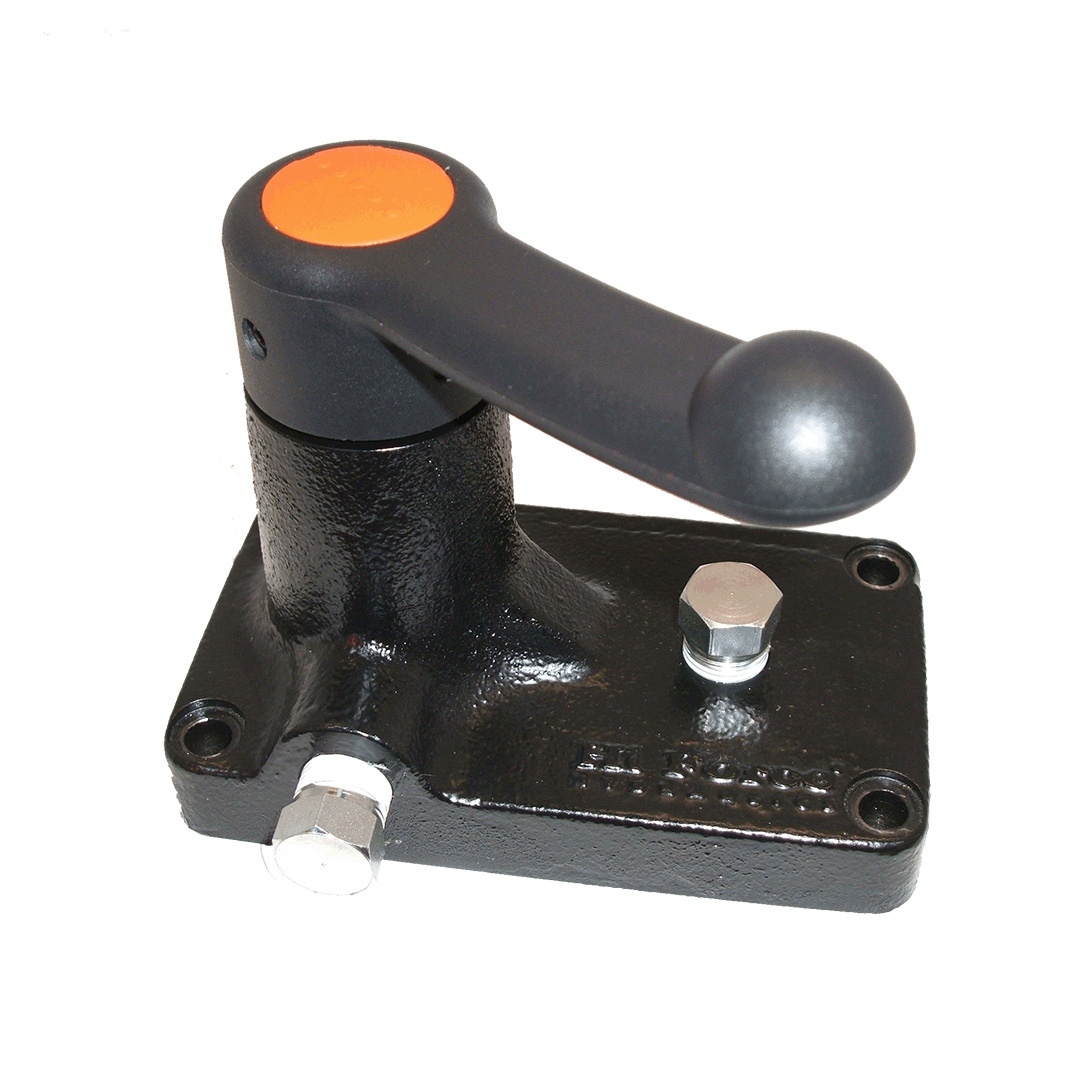

Directional Control Valves

Directional Control Valves

  • Choice of 2, 3 or 4-way options
  • Designed to provide precise control of oil flow and pressure
Enquire now

Product Overview

Hi-Force control valves are designed to provide precise control of the hydraulic system either by accurate pressure or directional flow control. The PMV range of pump mounted valves is identical to the valves fitted to the Hi-Force powered pumps and can be easily interchanged, making the powered pump even more versatile. The RMV range allows for remote mounting away from the pump.

  • Working pressure 700 bar
  • Pump or remote mounted design
  • Manual valve options available

Dimension

Hi force dim draw system components Directional control valves PMV2 3
Hi force dim draw system components Directional control valves PMV4

DescriptionModel Number
Manual Valve No Load HoldingManual Valve With Load HoldingManual Valve Closed Centre
Pump mounted, 2-way, 2 position valvePMV2--
Pump mounted, 3-way, 3 position valvePMV3PMV3LPMV3C
Pump mounted, 4-way, 3 position valvePMV4PMV4LPMV4C
Remote mounted, 3-way, 3 position valveRMV3RMV3LRMV3C
Remote mounted, 4-way, 3 position valveRMV4RMV4LRMV4C

Services and support

Whether it is choosing the right tool for the job, improving technical and operational knowledge or product maintenance and warranty, HES is here to help.

Tell me more

Enquire now

Want to know more about the range? Our product team are on hand to support you with your requirements. Speak to our team today.

Enquire

Related products

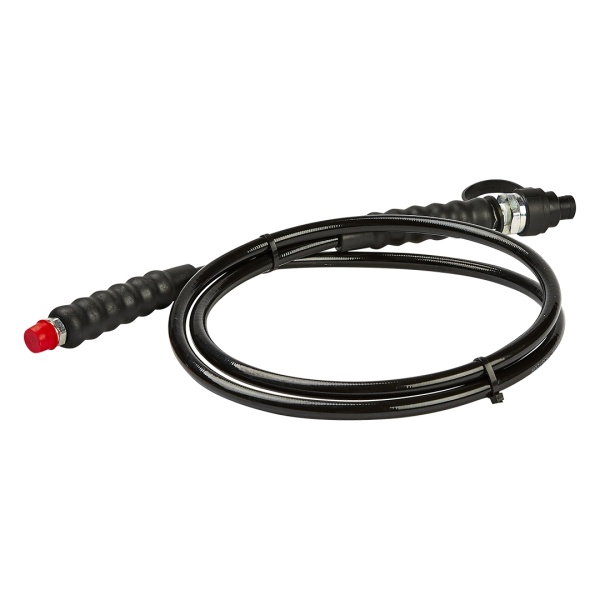

Hydraulic Hoses

Hi force system components hc 2

High Pressure Hydraulic Hoses - Black & Red

View

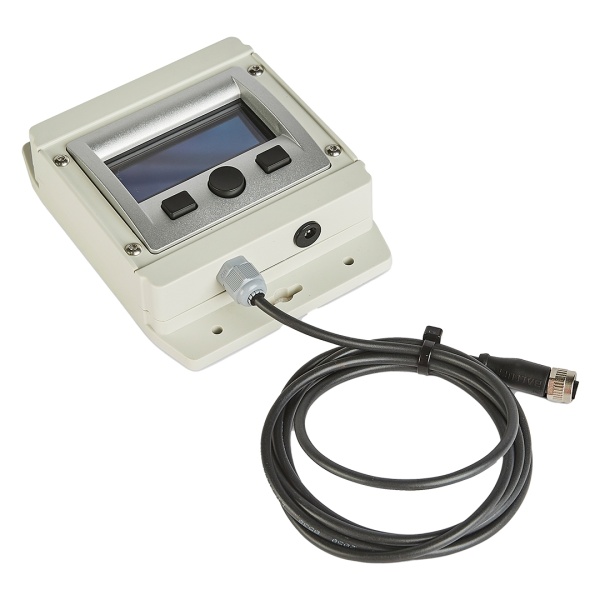

Pressure Transducer and Digital Display

Hi force system components hdd1 hpt

Pressure Transducer & Digital Display Unit

View

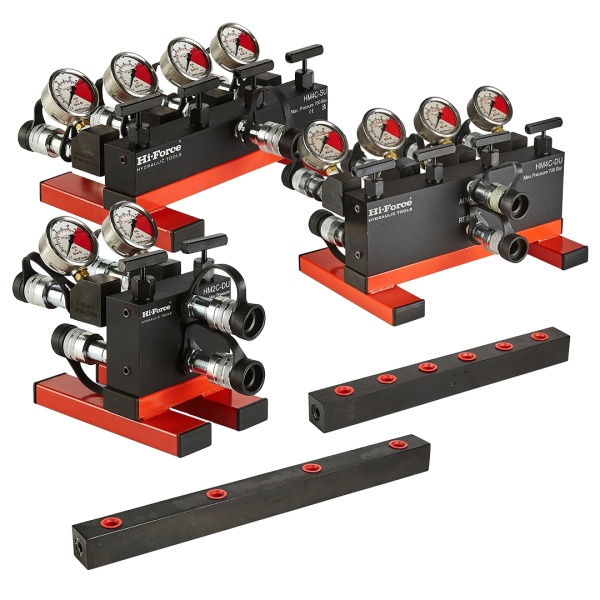

Manifolds

Hi force system compnents manifolds grp

Distribution Blocks

View

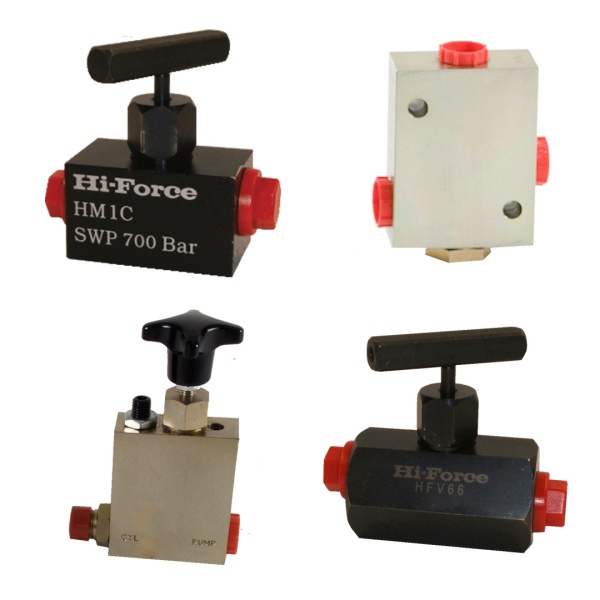

Flow Control Valves
