Hi-Force product

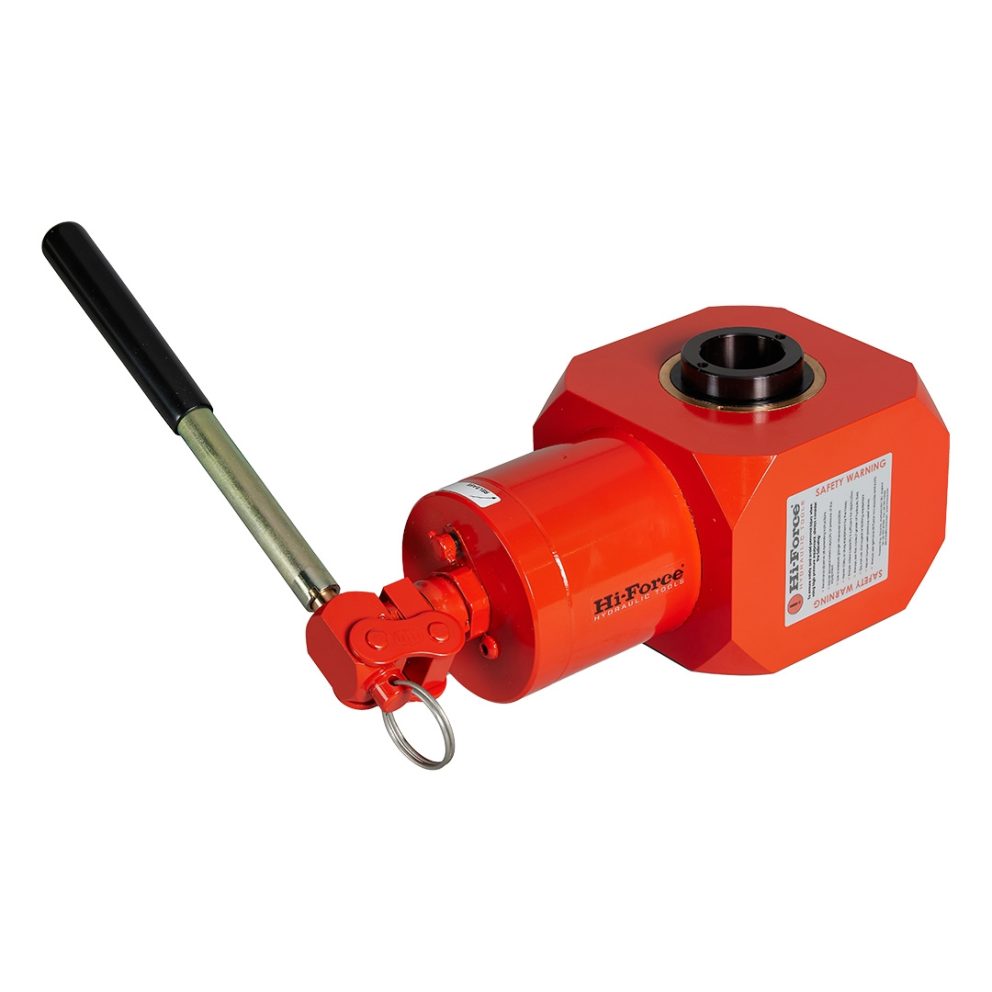

JCH Range

Compact Jacks - Hollow Piston

  • Load return piston
  • Nitrocarburised piston rod
  • 360 degree positional pumping mechanism
  • Internal safety overload valve
Enquire now

Product Overview

The JCH compact jacks are ideally suited for tooling, maintenance and tensioning applications, where a pulling force is required. Lightweight, easy to operate and manufactured from aluminium, the models feature a hollow piston. The pumping mechanism rotates through 360° providing maximum versatility in any application. With the removable operating handle measuring only 240 mm in length, these compact lifting jacks will fit in any toolbox.

  • Capacity of 13 and 21 tonnes
  • Choice of 41 mm or 45 mm stroke length
  • Lightweight and compact

Technical specifications

Model NumberCapacity tonnesBody constructionStroke mmWeight kg
JCH1313Aluminium415.5
JCH2121Aluminium458.0

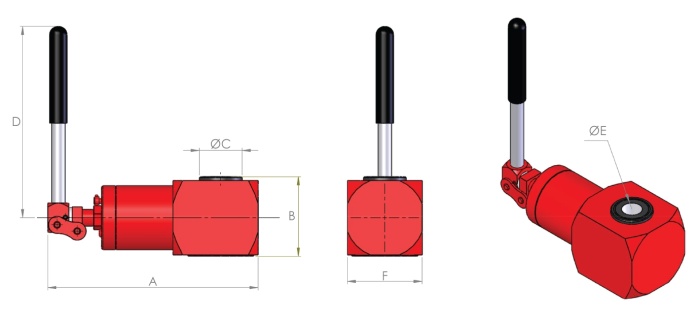

Dimension

Hi force dim draw jacks JCH

Dimensions (mm)

Model numberABCDEF
JCH13257955128110225
JCH212811146028512535
